|Type:||Inch Taper Roller Bearing||Size:||40.987X67.975X17.5mm|
|Number Of Row:||Lm300849/11||Brand:||Oem/Neutral/QRL/CUSTOMIZED|
Nissan Terrano Tapered Roller Bearing,
Tapered Roller Bearings Single Row,

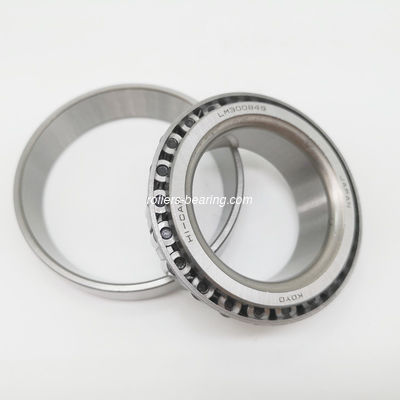

Front Wheel Out For Nissan Terrano Tapered Bearing Lm300849/11
Tapered Roller Bearing Specification
|Single Row Inch Taper Roller Bearing LM300849/LM300811 300849/11|
|Material||Gcr15 chome steel|
|Quality||ISO9001 2000 Standard;CE|
|Package||Standard exported package or according to our customers' requirement|
Inch Taper Roller Bearing Description
It is not possible to imagine any modern machine without the bearing, the functions of which consist in the significant reducing of friction between the rotating and stationary machine parts, on the one hand, and in the ability to carry the defined load, on the other hand. The seal also takes an important part; it protects the bearing from the external actions and keeps the bearing lubricated. Durability and reliability of any machine in a great measure depends on the right choice and quality of the applied bearings, seals and lubrication.
For its rather more than 100 years modern history (from the moment of the beginning of the first mass production in 1883 in Germany, which became possible due to the innovation of the balls grinding machine) the rolling bearing remains conservative and at the same time innovative part of the machines and mechanisms. Constant is the rolling bearing operation principle (the replacement of sliding friction by rolling friction) and the rolling bearing main parts composition (inner and outer rings, rolling elements and cage). At the same time, following the growing demand in all the industries, the new bearings constructions permanently appear; the applied materials, control technology and production engineering are being improved.
|Part No.||BOUNDARY DIMENSIONS (in m.m.)||LOAD RATING||LIMITING SPEED (R.P.M.)||MASS|
|d||D||B||C||T||STATIC (Co) KN||DYNAMIC (C) KN||Grease||Oil||(~ Kg.)|
|LM 102949 / LM 102910||45.242||73.431||19.812||15.748||19.558||76||54||4800||6400||0.307|
|LM 603049 / LM 2603011||45.242||77.788||19.842||15.08||19.842||70.3||55.3||5850||7500||0.37|
|HM 204049 / HM 204010||45.987||90.975||32||26.5||32||150.5||119.1||4300||5600||0.94|
|369 - S / 362 A||47.625||88.9||22.225||16.153||20.638||91||76.5||4300||5600||0.55|
|HM 804846 / HM 804810||47.625||95.25||29.37||23.02||30.162||140||104.3||4000||5300||0.98|
|CK 50 K / 3720||50||93.264||30.302||23.812||30.162||148.9||110.9||4000||5300||0.87|
|JW 5049 / JW 5010||50||105||29||22||32||145.5||114.3||3400||4500||1.23|
|370A / 362A||50.8||88.9||22.225||16.513||20.638||91||76.5||4300||5600||0.51|
|28580 / 25821||50.8||92.075||25.4||19.845||24.607||116.1||84.2||4000||5300||0.7|
|3780 / 3720||50.8||93.264||30.302||23.812||30.162||148.9||110.9||4000||5300||0.84|
|33889 / 33822||50.8||95.25||28.575||22.225||27.783||140||107.3||3900||5200||0.88|
Taper Roller Bearings Applications
1. Material handling machinery:mining machinery, textile machinery, lifting equipment, Agricultural machinery: tractors, harvesting machinery, etc.
2. Heavy-duty mining machinery: metallurgical machinery, mining machinery, lifting machinery, loading and unloading machinery, industrial vehicles, cement equipment, etc.
3. Construction Machinery: forklifts, earth moving machinery, compaction machinery, concrete machinery, etc.
4. The general petrochemical machinery: oil drilling machinery, oil refining machinery, chemical machinery, gas compressors, paper machinery, printing machinery, etc.
5. Machine tools: forging machinery, foundry machinery, woodworking machinery, etc.
6. Car: truck, road, bus, car, modified car, motorcycle ,etc.
