Product Details:
|
| Type: | Taper Roller Bearing | Inch: | 150x225x48MM |
|---|---|---|---|
| Number Of Row: | 32030 X | Payment Terms:: | D/D, CASH, D/P |
| Cage Material: | ISO9001:2008 Standard | Material:: | Chrome Steel,Gcr15 |
| Brand Name:: | QRL | Weight: | 6.178 Kg/pcs |
| High Light: | 32030 X Taper Roller Bearings,Chrome Steel Taper Roller Bearings |
||

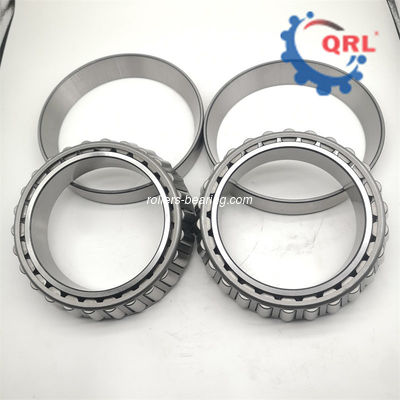

32030 X Tapered roller bearings 150x225x48MM
Tapered Roller Bearing Specification
| d |
150 mm
|
Bore diameter |
|---|---|---|
| D |
225 mm
|
Outside diameter |
| T |
48 mm
|
Total width |
| d1 |
≈187.53 mm
|
Shoulder diameter of inner ring |
| B |
48 mm
|
Width of inner ring |
| C |
36 mm
|
Width of outer ring |
| r1,2 |
min.3 mm
|
Chamfer dimension of inner ring |
| r3,4 |
min.2.5 mm
|
Chamfer dimension of outer ring |
| a |
48.775 mm
|
Distance side face to pressure point |
Taper Roller Bearing Description
Tapered roller bearings are used in a variety of industrial applications. The tapered rollers allow the bearings to accommodate heavy radial, axial and combination loads. This loading flexibility combined with a variety of configurations can be designed from single cups, double cups, and cones. This is why tapered roller bearings are designed into almost every industry, particularly large diameter tapered roller bearings.
Product number
| Part No. | BOUNDARY DIMENSIONS (in m.m.) | LOAD RATING | LIMITING SPEED (R.P.M.) | MASS | ||||||
| d | D | B | C | T | STATIC (Co) KN | DYNAMIC (C) KN | Grease | Oil | (~ Kg.) | |
| 72212 / 72487 | 53.975 | 123.825 | 32.791 | 25.4 | 36.512 | 165 | 145 | 2850 | 4000 | 2.03 |
| JW 5549/JW5510 | 55 | 115 | 31 | 23.5 | 34 | 161.9 | 126 | 3000 | 4000 | 1.558 |
| 387 / 382 | 57.15 | 98.425 | 21.945 | 17.825 | 21 | 102 | 80.9 | 3800 | 5000 | 0.63 |
| 462 A / 453 X | 57.15 | 104.775 | 29.317 | 24.605 | 30.162 | 148 | 115 | 3500 | 4700 | 1.05 |
| 39580 / 39520 | 57.15 | 112.712 | 30.162 | 23.812 | 30.162 | 204.2 | 144 | 3200 | 4300 | 1.44 |
| 39581/39520 | 57.15 | 112.712 | 30.162 | 23.812 | 30.162 | 204.2 | 144 | 3200 | 4300 | 1.4 |
| 78225C / 78551 | 57.15 | 140.03 | 33.236 | 23.52 | 36.513 | 211.7 | 170.9 | 2600 | 3400 | 2.69 |
| JF 6049 / JF6010 (T 2EE 060) | 60 | 115 | 39 | 33 | 40 | 260.3 | 194.1 | 3200 | 4300 | 1.85 |
| 392/394A | 61.913 | 111 | 21.996 | 18.824 | 22 | 113.7 | 85.3 | 3200 | 4300 | 0.87 |
| L 910349 / L 910310 | 63.485 | 94.975 | 15.5 | 12 | 17 | 56.6 | 38.4 | 3600 | 4800 | 0.375 |
| 395/394A | 63.5 | 110 | 21.996 | 18.824 | 22 | 113.7 | 85.3 | 3200 | 4300 | 0.81 |
| 3982X 3927 XSXI | 63.5 | 110 | 30.048 | 23.02 | 29.37 | 174.7 | 118.9 | 4000 | 5300 | 1.1 |
Taper Roller Bearings Applications
The conical geometry in the bearing uses line contact, which permits greater loads to be carried than with a point contact (ball) bearing. The rollers are guided by a flange on the back of the inner ring (See Components of a Tapered Roller Bearing). This stops the rollers from sliding out at high speed due to their momentum. The larger the half angles of these cones, the greater the axial load the bearing can sustain.
In wheel bearing applications, both radial and axial loads are present. The weight of the vehicle creates the downward load, which is the radial load. The axial load, or thrust load, is created by the turning of the vehicle.
