Product Details:
|
| Type: | Taper Roller Bearing | Inch: | 40*85*16.5/24 Mm |
|---|---|---|---|
| Number Of Row: | St4085 | Roller Bearing Type: | Inch Bearing |
| Brand Name:: | OEM-QRL | Service:: | OEM Customized Services |
| Weight: | 1.15 Kg | Application:: | Engineering Machinery |
| High Light: | St4085 Taper Roller Bearing,Hc St4085 Taper Roller Bearing |
||

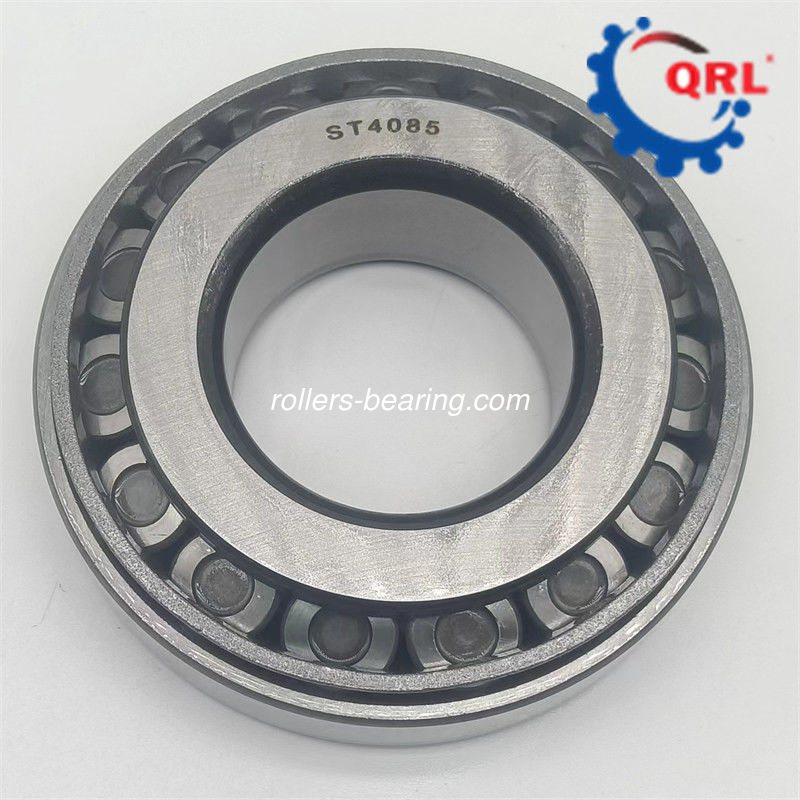

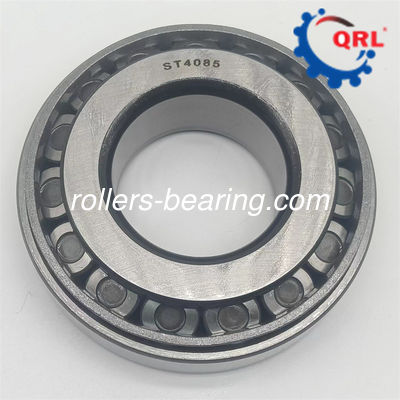

St4085 Taper Roller Bearing Hc St4085 LFT RAV4 Differential Bearing 40*85*16.5/24 mm
Tapered Roller Bearing Specification
| Product Name | Hc St4085 LFT RAV4 Differential Bearing |
| Model NO. | ST4080 |
| Size | 40*85*16.5/24 mm |
| Precision Rating | P0, P6, P5, P4, P2 |
| Material | Chrome steel (GCr15) |
| Dye corner | Black corner,light corner |
| Clearance | C0 C1 C2 C3 C4 C5 |
| Vibration & Noisy | Z1,Z2,Z3 V1,V2,V3 |
| Cage | Steel |
| Features | High Precision, High Speed, Long Life, High Reliability, Low Noise , Reduce Friction |
| Certification | ISO 9001:2008 |
| Packing | 1.Neutral Packing Bearing 2.Industrial Packing 3.Commercial Packing Bearing 4.Customize |
| Delivery Time | 15-25 Days After The Order is Confirmed |
| Shippment | 1.By Sea 2.By Air 3.By Express |
Taper Roller Bearing Description

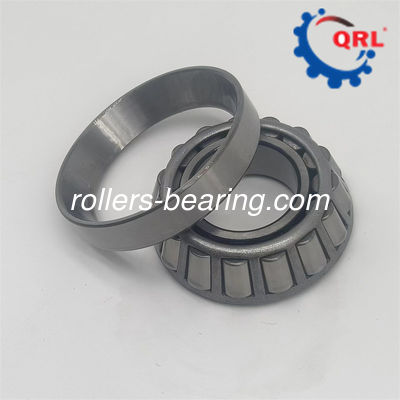

Tapered roller bearings consist of four basic components including: the cone (inner ring), the cup (outer ring), tapered rollers, and a cage (roller retainer). The cone, cup and rollers carry the load while the cage spaces and retains the rollers on the cone. The cone, rollers and cage components of our tapered roller bearings are referred to as the cone assembly. Individual cup and cone components of our tapered roller bearings are available as well as the complete assembly. In addition, We offers a variety of configurations to our tapered roller bearings such as single-row, double-row
Tapered Roller Bearing Product number
| 90366-40010 | 30208JYR1 | HR30208JA-1SB | |
| 90366-40011 | 30208JYR1 | HR30208JA-1SB | |
| 90366-40016 | TRA080702 | ||
| 90366-40026 | TR0809A | 32308CN | 32308CN |
| 90366-40036 | ST4085 | ||
| 90366-40100 | KETR081105ARUR4 | ||
| 90366-43002 | 46T090904-1NLFTSH6CS43 | ||
| 90366-45001 | 30309DJR | HR30309DN | |
| 90366-45104 | 30209JRYA1 | ||
| 90366-48002 | ST4870LFT | ||
| 90366-49001 | TR101204 | ||
| 90366-50011 | TR100802A | ||
| 90366-50014 | TR100902D-2 | ||
| 90366-55016 | 32211JR | HR32211J | 32211U |
| 90366-55029 | 32211JR | HR32211J | 32211U |
| 90366-55042 | 32011JR | HR32011XJ | 32011X |
| 90366-60001 | 28985/21 | 28985R/921RSA | 28985/28921 |
Taper Roller Bearings Applications
Tapered roller bearings feature a cup and cone assembly. The cup is comprised of the outer ring and the cone assembly consists of inner ring, rollers, and cage. This bearing construction accommodates combined loads and provides low friction during operation. By adjusting one single row tapered roller bearing against a second tapered roller bearing and applying a preload, a rigid bearing application can be achieved.
