Product Details:
|
| Type: | Tapered Roller Bearing | Inch: | 3.5000x6.0000x1.5625 Inch |
|---|---|---|---|
| Number Of Row: | HM518445/10 | Roller Bearing Type: | Auto Bearings. |
| Brand Name:: | OEM-QRL | Weight: | 2.95 Kg |
| Application: | Automotive | Stock: | 5000pcs |
| Highlight: | Timken Tapered Roller Bearing,HM518445 Tapered Roller Bearing,HM518410 Tapered Roller Bearing |
||

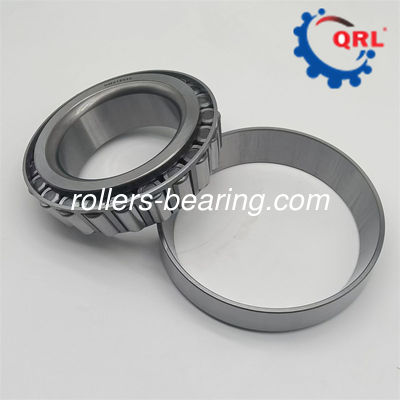

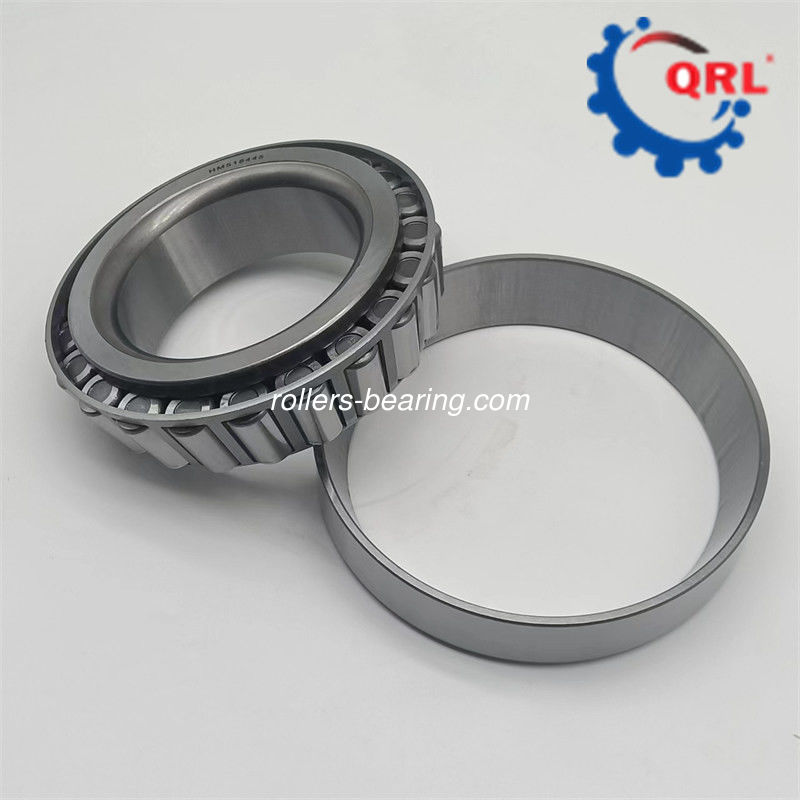

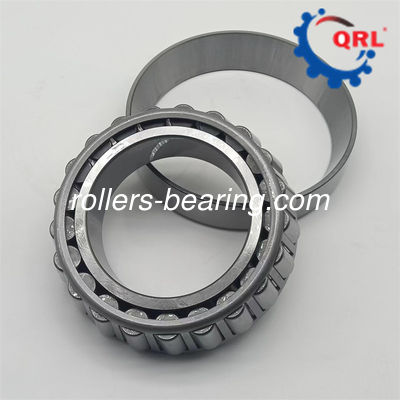

HM518445 HM518410 Timken Tapered Roller Bearing 3.5000x6.0000x1.5625 inch
Tapered Roller Bearing Specification
Specifications
Series: HM518400
Cone part number: HM518445
Cup part number: HM518410
Bearing weight: 2.8kg
Dimensions
Inside diameter d: 88.900mm - 3.5000 inch
Outside diameter D: 152.400mm - 6.000 inch
Width T: 39.688mm - 1.5625 inch
Cone width B: 39.688mm - 1.5625 inch
Cup width C: 30.163mm - 1.1875 inch
Tapered roller bearings consist of four basic components including: the cone (inner ring), the cup (outer ring), tapered rollers, and a cage (roller retainer). The cone, cup and rollers carry the load while the cage spaces and retains the rollers on the cone. The cone, rollers and cage components of our tapered roller bearings are referred to as the cone assembly. Individual cup and cone components of our tapered roller bearings are available as well as the complete assembly. In addition, We offers a variety of configurations to our tapered roller bearings such as single-row, double-row
Tapered Roller Bearing Product number
| TOYOTA | 90366-40016 | KOYO | 33008 JR |
| TOYOTA | 90366-40016 | KOYO | TRA 080702 |
| TOYOTA | 90366-40059 | KOYO | ST4090-N |
| TOYOTA | 90366-40064 | NACHI | 40KB681A1 |
| TOYOTA | 90366-40064 | KOYO | 33008 JR |
| TOYOTA | 90366-40077 | NSK | R 40-24SB |
| TOYOTA | 90366-40088 | KOYO | 30308 DJR |
| TOYOTA | 90366-40094 | NACHI | 40KB722 |
| TOYOTA | 90366-40094 | TIMKEN | NP014119/NP419902 |
| TOYOTA | 90366-40097 | NACHI | 40KC683 |
| TOYOTA | 90366-44001 | NACHI | 44KB721 |
| TOYOTA | 90366-45001 | KOYO | 30309DJR |
| TOYOTA | 90366-45016 | KOYO | 32211JR |
| TOYOTA | 90366-45035 | NSK | R45-33g |
| TOYOTA | 90366-48001 | KOYO | ST4890 |
| TOYOTA | 90366-48002 | KOYO | ST4870 |
| TOYOTA | 90366-50001 | NACHI | 50 KB8301 |
| TOYOTA | 90366-50007 | KOYO | TR100802-2 |
| TOYOTA | 90366-50054 | NACHI | 32010 JA1 |
| TOYOTA | 90366-50087 | KOYO | 32010JA1/50KB102 |
| TOYOTA | 90366-51001 | KOYO | ST5186LFT |
| TOYOTA | 90366-54011 | KOYO | ST5487-N |
Taper Roller Bearings Applications
Tapered roller bearings feature a cup and cone assembly. The cup is comprised of the outer ring and the cone assembly consists of inner ring, rollers, and cage. This bearing construction accommodates combined loads and provides low friction during operation. By adjusting one single row tapered roller bearing against a second tapered roller bearing and applying a preload, a rigid bearing application can be achieved.
