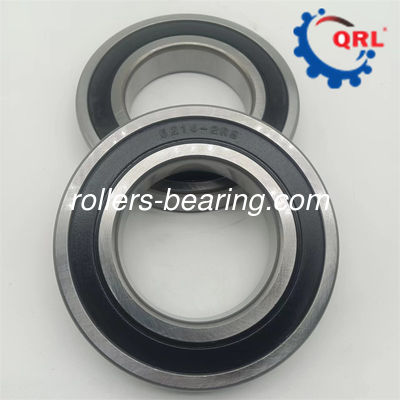

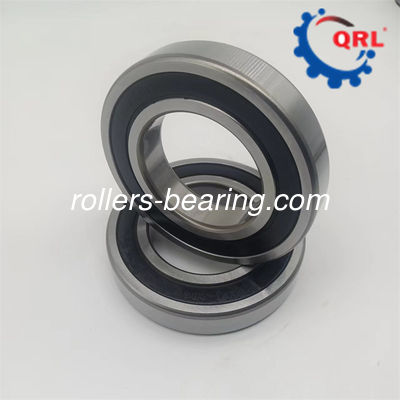

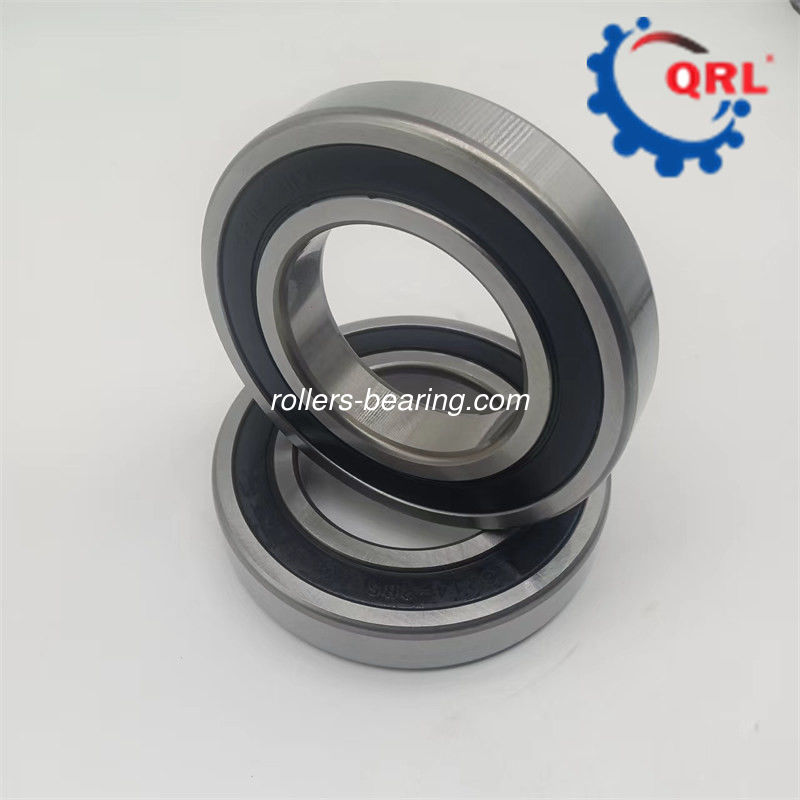

Product Details:
|
| Type: | Deep Groove Ball Bearing | Number: | 6214-2RS |
|---|---|---|---|
| WEIGHT: | 0.21 KG | Size: | 70X125X24MM |
| Clearance: | C5 | Sample: | 6-16 Working Days Depends On Quantity |
| Seals Type: | ZZ 2RS OPEN, ZZ, 2RS, Open, RS | Applicable Models:: | Auto Parts |
| Highlight: | 6214-ZZ Radial Ball Bearing,Radial Ball Bearing 70X125X24MM |
||
Deep Groove Ball Bearing Specification
| Bearing Type | Sealed | |
| Bore Dia (d) | 70.000 | mm |
| Outer Dia (D) | 125.000 | mm |
| Radius (min) (rs) | 1.50 | mm |
| Dynamic Load Rating (Cr) | 62,200 | N |
| Static Load Rating (Cor) | 44,100 | N |
| Max Speed (Grease) | 3,400 | rpm |
| Max Speed (Oil) | 6,300 | rpm |
| Ball Qty | 10 | |
| Ball Dia (Dw) | 17.463 | mm |
| Width (B) | 24.000 | mm |
| Max. Shaft Shoulder Dia. Inner (Ui) | 84.0 | mm |
| Min. Housing Shoulder Dia., Outer (Uo) | 117.00 | mm |
| Weight (g) | 1,070.00 | grams |
Deep Groove Ball Bearing Description
Deep groove ball bearings are one of the most common style of ball bearings which support axial forces in both directions as well as radial forces. The bearing has a single row of balls retained in a cage and is sealed for life with an NBR seal on both sides of the bearing, the bearing is pre-greased which means you do not need to lubricate the bearing.
Deep Groove Ball Bearing Product number
| Model | d | D | H | Cr | Cor | grease | oil | weight |
| (mm) | (mm) | (mm) | (kN) | (kN) | (r/min) | (r/min) | (kg) | |
| 6300 | 10 | 35 | 11 | 7.65 | 3.48 | 18000 | 24000 | 0.053 |
| 6301 | 12 | 37 | 12 | 9.72 | 5.08 | 17000 | 22000 | 0.06 |
| 6302 | 15 | 42 | 13 | 11.5 | 5.42 | 16000 | 20000 | 0.082 |
| 6303 | 17 | 47 | 14 | 13.5 | 6.58 | 15000 | 18000 | 0.115 |
| 6304 | 20 | 52 | 15 | 15.8 | 7.88 | 13000 | 16000 | 0.142 |
| 6305 | 25 | 62 | 17 | 20.6 | 11.3 | 11000 | 13000 | 0.232 |
| 6306 | 30 | 72 | 19 | 26.7 | 15 | 6600 | 12000 | 0.346 |
| 6307 | 35 | 80 | 21 | 33.4 | 19.3 | 8500 | 10000 | 0.457 |
| 6308 | 40 | 90 | 23 | 40.8 | 24 | 7000 | 8500 | 0.639 |
| 6309 | 45 | 100 | 25 | 52.8 | 31.8 | 6300 | 7500 | 0.837 |
Deep Groove Ball Bearing Applications
1. Material handling machinery:mining machinery, textile machinery, lifting equipment, Agricultural machinery: tractors, harvesting machinery, etc.
2. Heavy-duty mining machinery: metallurgical machinery, mining machinery, lifting machinery, loading and unloading machinery, industrial vehicles, cement equipment, etc.
3. Construction Machinery: forklifts, earth moving machinery, compaction machinery, concrete machinery, etc.
4. The general petrochemical machinery: oil drilling machinery, oil refining machinery, chemical machinery, gas compressors, paper machinery, printing machinery, etc.
5. Machine tools: forging machinery, foundry machinery, woodworking machinery, etc.
6. Car: truck, road, bus, car, modified car, motorcycle ,etc.
