Product Details:
|
| Type: | Deep Groove Ball Bearing | Number: | 35bc07 S61 |
|---|---|---|---|
| WEIGHT: | 0.72KG | Size: | 35x72x15mm |
| Clearance: | C5 | Sample: | 6-16 Working Days Depends On Quantity |
| Seals Type: | Open, | Applicable Models:: | For HONDA VARIO 125 |
| High Light: | 35bc07 S61 Deep Groove Ball Bearing,Deep Groove Ball Bearing 35x72x15mm |
||

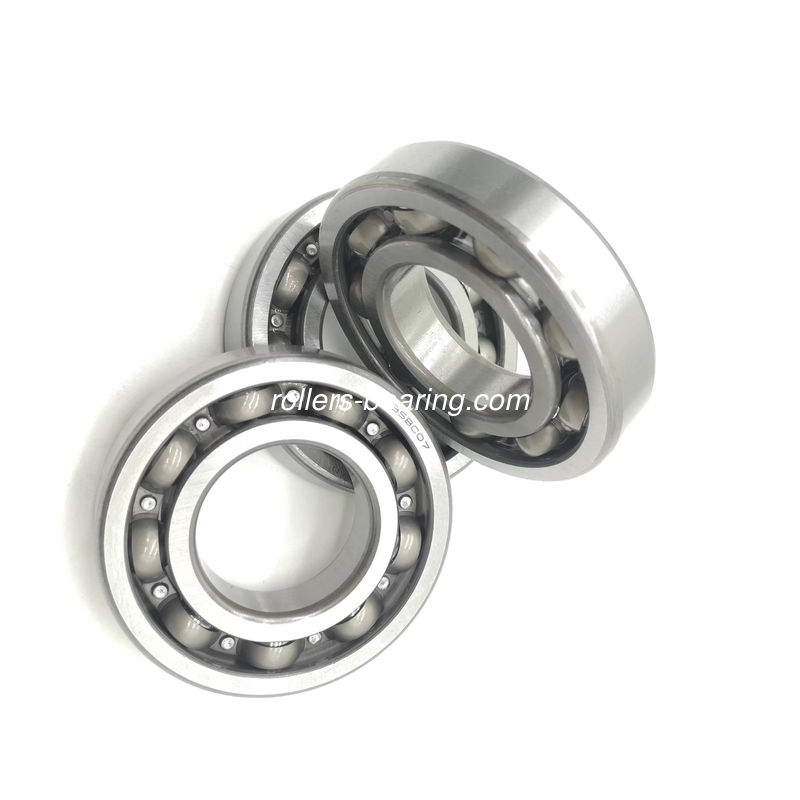

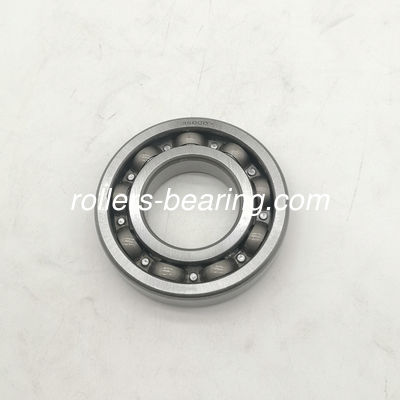

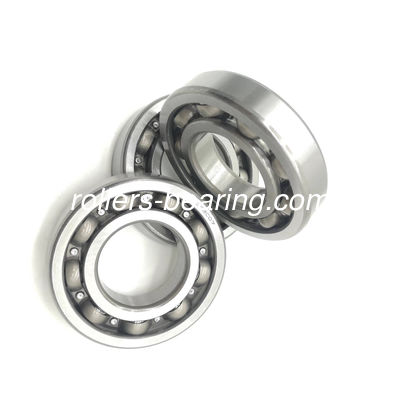

Deep Groove Ball Bearing Specification
Honda Vario 125 Fi Crankshaft Bearing
P2-35BC07S57CS22
Size: 35-72-15
Deep Groove Ball Bearing Description
Deep groove ball bearings are one of the most common style of ball bearings which support axial forces in both directions as well as radial forces. The bearing has a single row of balls retained in a cage and is sealed for life with an NBR seal on both sides of the bearing, the bearing is pre-greased which means you do not need to lubricate the bearing.
Deep Groove Ball Bearing Product number
| Model | d | D | H | Cr | Cor | grease | oil | weight |
| (mm) | (mm) | (mm) | (kN) | (kN) | (r/min) | (r/min) | (kg) | |
| 6300 | 10 | 35 | 11 | 7.65 | 3.48 | 18000 | 24000 | 0.053 |
| 6301 | 12 | 37 | 12 | 9.72 | 5.08 | 17000 | 22000 | 0.06 |
| 6302 | 15 | 42 | 13 | 11.5 | 5.42 | 16000 | 20000 | 0.082 |
| 6303 | 17 | 47 | 14 | 13.5 | 6.58 | 15000 | 18000 | 0.115 |
| 6304 | 20 | 52 | 15 | 15.8 | 7.88 | 13000 | 16000 | 0.142 |
| 6305 | 25 | 62 | 17 | 20.6 | 11.3 | 11000 | 13000 | 0.232 |
| 6306 | 30 | 72 | 19 | 26.7 | 15 | 6600 | 12000 | 0.346 |
| 6307 | 35 | 80 | 21 | 33.4 | 19.3 | 8500 | 10000 | 0.457 |
| 6308 | 40 | 90 | 23 | 40.8 | 24 | 7000 | 8500 | 0.639 |
| 6309 | 45 | 100 | 25 | 52.8 | 31.8 | 6300 | 7500 | 0.837 |
Deep Groove Ball Bearing Applications
1. Material handling machinery:mining machinery, textile machinery, lifting equipment, Agricultural machinery: tractors, harvesting machinery, etc.
2. Heavy-duty mining machinery: metallurgical machinery, mining machinery, lifting machinery, loading and unloading machinery, industrial vehicles, cement equipment, etc.
3. Construction Machinery: forklifts, earth moving machinery, compaction machinery, concrete machinery, etc.
4. The general petrochemical machinery: oil drilling machinery, oil refining machinery, chemical machinery, gas compressors, paper machinery, printing machinery, etc.
5. Machine tools: forging machinery, foundry machinery, woodworking machinery, etc.
6. Car: truck, road, bus, car, modified car, motorcycle ,etc.
