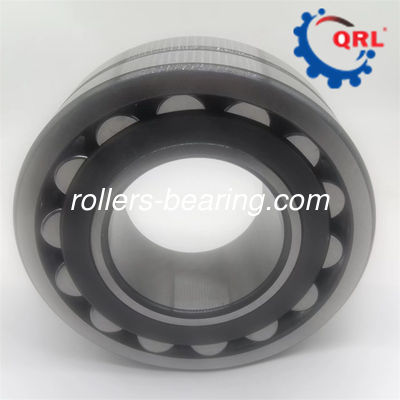

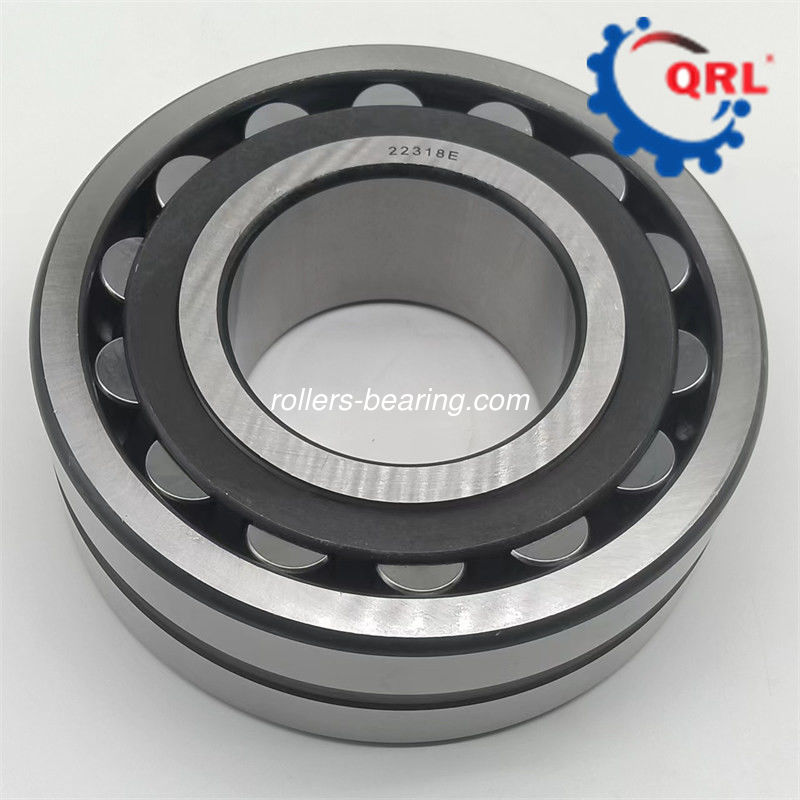

Product Details:
|
| Type: | Spherical Roller Bearing | Number: | 22318 |
|---|---|---|---|
| WEIGHT: | 9.05kg | Size: | 90x190x64 Mm |
| Clearance: | C5 | Sample: | 6-16 Working Days Depends On Quantity |
| Seals Type: | Open, | Material: | Chrome Steel |
| Application: | Mining. Metallurgy. Agriculture. Chemical | ||
| High Light: | 22318 Spherical Roller Bearing,Spherical Roller Bearing C5 |
||
| d | 90 mm | Bore diameter |
| D | 190 mm | Outside diameter |
| B | 64 mm | Width |
| Cr | 610.000 N | Basic dynamic load rating, radial |
| C0r | 630.000 N | Basic static load rating, radial |
| Cur | 56.000 N | Fatigue load limit, radial |
| nG | 3.850 1/min | Limiting speed |
| nϑr | 3.000 1/min | Reference speed |
| ≈m | 9.0kg | Weight |
Spherical Roller Bearing Description
A spherical roller bearing is a rolling-element bearing that permits rotation with low friction, and permits angular misalignment. Typically these bearings support a rotating shaft in the bore of the inner ring that may be misaligned in respect to the outer ring.
Spherical Roller Bearing Product number
| Bearings NO. | inner d (mm) | External D (mm) | Width size (mm) | Weight (kg) |
| 21310 | 50 | 110 | 27 | 1.35 |
| 21311 | 55 | 120 | 29 | 1.7 |
| 21312 | 60 | 130 | 31 | 2.1 |
| 21313 | 65 | 140 | 33 | 2.55 |
| 21314 | 70 | 150 | 35 | 3.1 |
| 21315 | 75 | 160 | 37 | 3.75 |
| 22215 | 75 | 130 | 31 | 1.7 |
| 22216 | 80 | 140 | 33 | 2.1 |
| 22217 | 85 | 150 | 36 | 2.65 |
| 22317 | 85 | 180 | 60 | 7.65 |
| 22218 | 90 | 160 | 40 | 3.4 |
| 22219 | 95 | 170 | 43 | 4.15 |
| 22319 | 95 | 200 | 67 | 10.5 |
| 23026 | 130 | 200 | 52 | 6 |
| 23226 | 130 | 230 | 80 | 14.5 |
| 23028 | 140 | 210 | 53 | 6.55 |
| 23030 | 150 | 225 | 56 | 7.95 |
| 23130 | 150 | 250 | 80 | 16 |
| 23230 | 150 | 270 | 96 | 24.5 |
| 23032 | 160 | 240 | 60 | 9.7 |
| 23132 | 160 | 270 | 86 | 20.5 |
| 23134 | 170 | 280 | 88 | 22 |
| 23036 | 180 | 280 | 74 | 17 |
| 23236 | 180 | 320 | 112 | 39.5 |
| 24013 | 65 | 100 | 35 | 0.95 |
| 24020 | 100 | 150 | 50 | 3.15 |
| 24120 | 100 | 165 | 65 | 5.65 |
| 24024 | 120 | 180 | 60 | 5.45 |
| 24126 | 130 | 210 | 80 | 11 |
| 24128 | 140 | 225 | 85 | 13.5 |
| 24130 | 150 | 250 | 100 | 20 |
| 24134 | 170 | 280 | 109 | 27.5 |
| 24040 | 200 | 310 | 109 | 31 |
| 24144 | 220 | 370 | 150 | 67 |
| 24148 | 240 | 400 | 160 | 83 |
| 24156 | 280 | 460 | 180 | 120 |
Spherical Roller Bearing Applications
Gearboxes.
Wind turbines.
Continuous casting machines.
Material handling.
Pumps.
Mechanical fans and blowers.
Mining and construction equipment.
Pulp and paper processing equipment.
