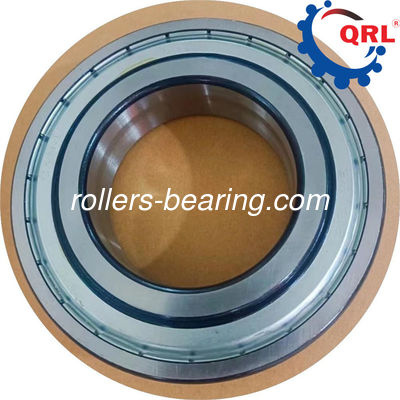

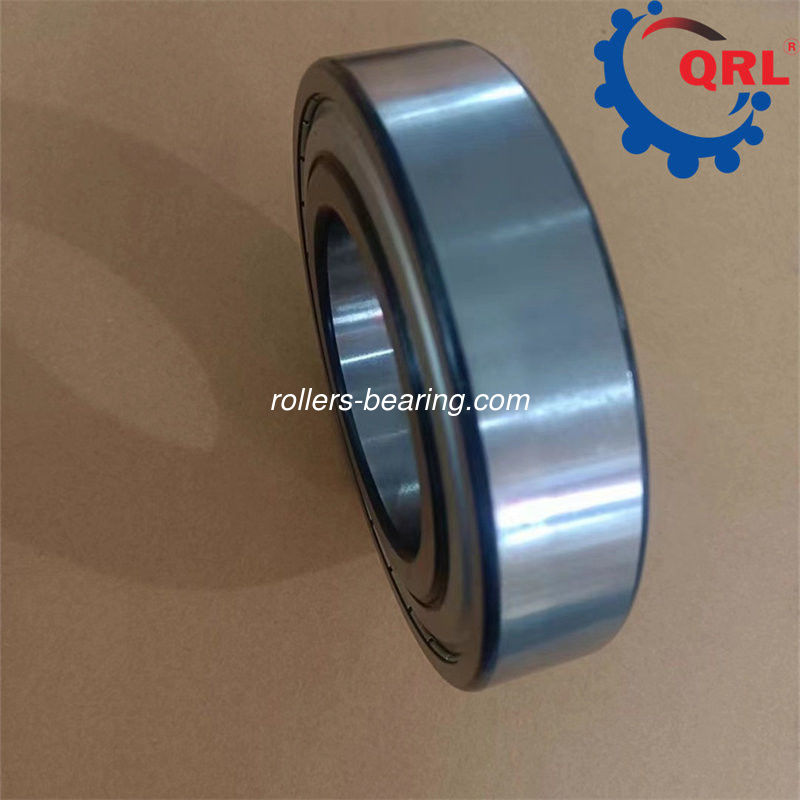

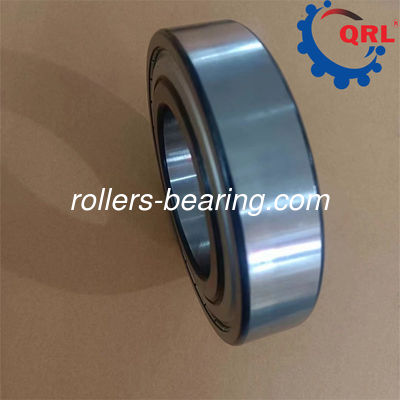

Product Details:
|
| Type: | Deep Groove Ball Bearing | Number: | 6214 ZZ / 2Z |
|---|---|---|---|
| WEIGHT: | 1.06 KG | Size: | 70x125x24 Mm |
| Clearance: | C3, C2, C4, C0, C5 | Sample: | 6-16 Working Days Depends On Quantity |
| Seals Type: | Metal Seal | Applicable Models:: | Auto Parts |
| Highlight: | C5 Deep Groove Ball Bearing,Deep Groove Ball Bearing 2Z |
||
Inside diameter d: 70mm
Outside diameter B: 125mm
Width D: 24mm
Basic Load Ratings
Dynamic: 63,7kn
Static: 45kn
Speed Ratings
Reference speed: 11000 r/min
Limiting speed: 7000 r/min
Deep Groove Ball Bearing Description
This 6214-ZZ ball bearing is a high-precision premium quality deep groove shielded 70x125x24 ball bearing made to ABEC 3 precision standards from AXIS. What sets this 6214-ZZ bearing apart from others is the ABEC 3 precision standard that this bearing is made to, the grade 10-balls used, and the superb electric motor quality rating (EMQ). ABEC 3 means that the bearing itself has a micron deviation from a nominal of 20.000mm of -8 micrometers. The standard ABEC 1 precision standard that almost all ball bearings are made to today has a deviation of -10 micrometers. In simple terms, the more precision a bearing is, the better it will perform in any given application. The grade 10 balls within this bearing are typically only found within ABEC 5 or higher bearings because of their more true roundness and precision. The balls within a bearing share the load capacity, so this also increases the working life versus the standard grade 25 balls used in other brands. The electric motor quality rating means that the bearing must operate at an extremely low noise level with minimal to no vibration. To achieve this, the 6214-ZZ bearing features raceways that are precision honed to a superb finish.
Deep Groove Ball Bearing Product number
| Model | d | D | H | Cr | Cor | grease | oil | weight |
| (mm) | (mm) | (mm) | (kN) | (kN) | (r/min) | (r/min) | (kg) | |
| 6300 | 10 | 35 | 11 | 7.65 | 3.48 | 18000 | 24000 | 0.053 |
| 6301 | 12 | 37 | 12 | 9.72 | 5.08 | 17000 | 22000 | 0.06 |
| 6302 | 15 | 42 | 13 | 11.5 | 5.42 | 16000 | 20000 | 0.082 |
| 6303 | 17 | 47 | 14 | 13.5 | 6.58 | 15000 | 18000 | 0.115 |
| 6304 | 20 | 52 | 15 | 15.8 | 7.88 | 13000 | 16000 | 0.142 |
| 6305 | 25 | 62 | 17 | 20.6 | 11.3 | 11000 | 13000 | 0.232 |
| 6306 | 30 | 72 | 19 | 26.7 | 15 | 6600 | 12000 | 0.346 |
| 6307 | 35 | 80 | 21 | 33.4 | 19.3 | 8500 | 10000 | 0.457 |
| 6308 | 40 | 90 | 23 | 40.8 | 24 | 7000 | 8500 | 0.639 |
| 6309 | 45 | 100 | 25 | 52.8 | 31.8 | 6300 | 7500 | 0.837 |
Deep Groove Ball Bearing Applications
1. Material handling machinery:mining machinery, textile machinery, lifting equipment, Agricultural machinery: tractors, harvesting machinery, etc.
2. Heavy-duty mining machinery: metallurgical machinery, mining machinery, lifting machinery, loading and unloading machinery, industrial vehicles, cement equipment, etc.
3. Construction Machinery: forklifts, earth moving machinery, compaction machinery, concrete machinery, etc.
4. The general petrochemical machinery: oil drilling machinery, oil refining machinery, chemical machinery, gas compressors, paper machinery, printing machinery, etc.
5. Machine tools: forging machinery, foundry machinery, woodworking machinery, etc.
6. Car: truck, road, bus, car, modified car, motorcycle ,etc.
