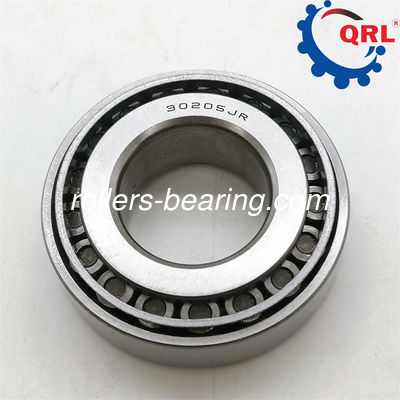

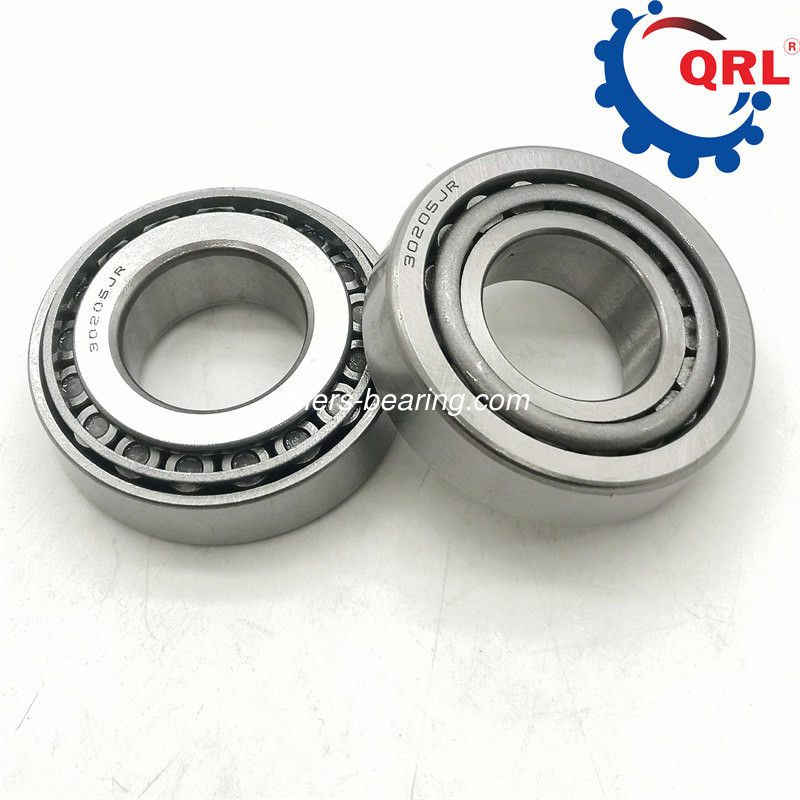

30205 30205 JR HR30205J 30205 J2/Q Tapered Roller Bearing 25x52x16.25MM

30205 30205 JR HR30205J 30205 J2/Q Tapered Roller Bearing 25x52x16.25MM
30205 30205 JR HR30205J 30205 J2/Q Tapered Roller Bearing 25x52x16.25MM
30205 30205 JR HR30205J 30205 J2/Q Tapered Roller Bearing 25x52x16.25MM 30205 30205 JR HR30205J 30205 J2/Q Tapered Roller Bearing 25x52x16.25MM 30205 30205 JR HR30205J 30205 J2/Q Tapered Roller Bearing 25x52x16.25MM

Large Image :  30205 30205 JR HR30205J 30205 J2/Q Tapered Roller Bearing 25x52x16.25MM

Product Details:
Place of Origin: CHINA
Brand Name: QRL
Certification: ISO2000/9002
Model Number: 30205 30205 JR HR30205J
Payment & Shipping Terms:
Price: Negotiable
Packaging Details: Carton/woven bag
Delivery Time: time by quantity
Payment Terms: L/C, D/A, D/P
Supply Ability: 10000 PCS

30205 30205 JR HR30205J 30205 J2/Q Tapered Roller Bearing 25x52x16.25MM

Description
Type: Tapered Roller Bearing Inch: 25x52x16.25MM
Number Of Row: 30205 30205 JR HR30205J Roller Bearing Type: Auto Bearings.
Brand Name:: OEM-QRL Weight: 0.23 Kg
Application: Machinery Stock: 5000pcs
High Light:

HR30205J Tapered Roller Bearing

,

Tapered Roller Bearing 25x52x16.25MM



30205 30205 JR HR30205J 30205 J2/Q Tapered Roller Bearing 25x52x16.25MM



Tapered Roller Bearing Specification




d
25 mm
Bore diameter
D
52 mm
Outside diameter
B
15 mm
Width, inner ring
C
13 mm
Width, outer ring
T
16,25 mm
Width, total
Cr
38.500 N
Basic dynamic load rating, radial
C0r
35.500 N
Basic static load rating, radial
Cur
5.200 N
Fatigue load limit, radial
nG
18.000 1/min
Limiting speed
nϑr
9.100 1/min
Thermal speed rating
≈m
153,83 g
Weight



Taper Roller Bearing Description



Tapered roller bearings are rolling element bearings that can support axial forces (i.e., suitable thrust bearings) and radial forces. The ability to support heavy thrust and radial loads beats spherical, cylindrical, or needle roller bearings.





Tapered Roller Bearing  Product number



TOYOTA 90366-40016 KOYO 33008 JR
TOYOTA 90366-40016 KOYO TRA 080702
TOYOTA 90366-40059 KOYO ST4090-N
TOYOTA 90366-40064 NACHI 40KB681A1
TOYOTA 90366-40064 KOYO 33008 JR
TOYOTA 90366-40077 NSK R 40-24SB
TOYOTA 90366-40088 KOYO 30308 DJR
TOYOTA 90366-40094 NACHI 40KB722
TOYOTA 90366-40094 TIMKEN NP014119/NP419902
TOYOTA 90366-40097 NACHI 40KC683
TOYOTA 90366-44001 NACHI 44KB721
TOYOTA 90366-45001 KOYO 30309DJR
TOYOTA 90366-45016 KOYO 32211JR
TOYOTA 90366-45035 NSK R45-33g
TOYOTA 90366-48001 KOYO ST4890
TOYOTA 90366-48002 KOYO ST4870
TOYOTA 90366-50001 NACHI 50 KB8301
TOYOTA 90366-50007 KOYO TR100802-2
TOYOTA 90366-50054 NACHI 32010 JA1
TOYOTA 90366-50087 KOYO 32010JA1/50KB102
TOYOTA 90366-51001 KOYO ST5186LFT
TOYOTA 90366-54011 KOYO ST5487-N


 Taper Roller Bearings Applications


Tapered roller bearings feature a cup and cone assembly. The cup is comprised of the outer ring and the cone assembly consists of inner ring, rollers, and cage. This bearing construction accommodates combined loads and provides low friction during operation. By adjusting one single row tapered roller bearing against a second tapered roller bearing and applying a preload, a rigid bearing application can be achieved.



30205 30205 JR HR30205J 30205 J2/Q Tapered Roller Bearing 25x52x16.25MM 030205 30205 JR HR30205J 30205 J2/Q Tapered Roller Bearing 25x52x16.25MM 1
