Product Details:
|
| Stock: | 5000pcs | Type: | Tapered Roller Bearing |
|---|---|---|---|
| Inch: | 34.93x72.23x25.4 Mm | Number Of Row: | HM88649/10 |
| Roller Bearing Type: | Auto Bearings. | Brand Name:: | OEM-QRL |
| Weight: | 0.501 KG | Application: | Machinery |
| High Light: | HM88649 Tapered Roller Bearing,HM88649/10 Tapered Roller Bearing |
||
| Product Code: HM88649-10 |

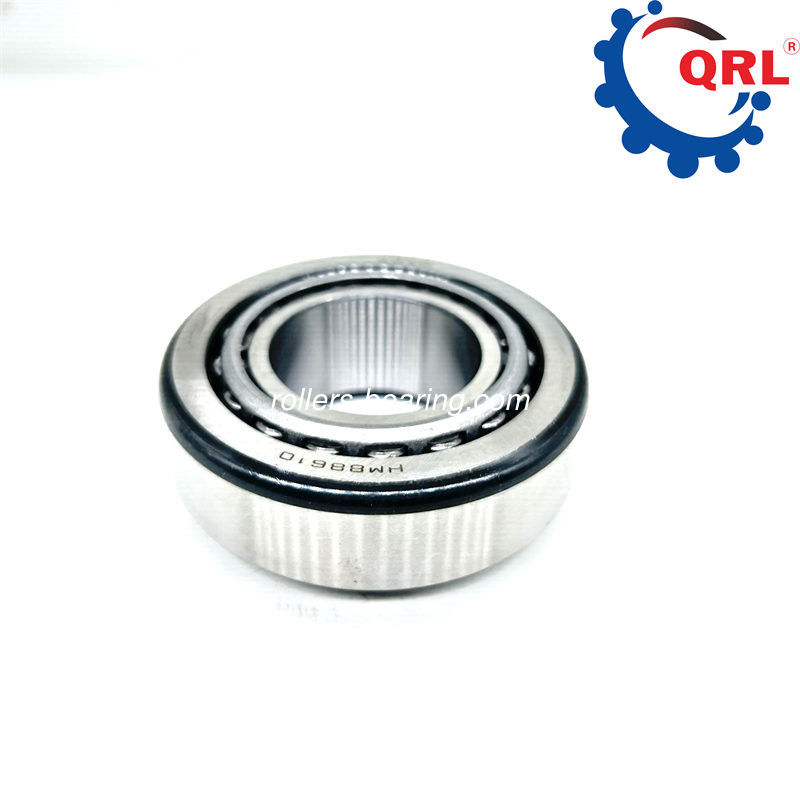

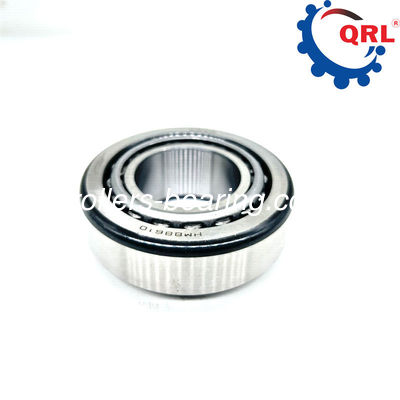

| Description: HM88649/HM88610 Imperial Taper Roller |
| Number Pieces : 1 |
| Brand : NTN, NSK, Koyo, or Timken |
| Specs: |
| Inside Diameter: 1.3750" (34.925mm) |
| Outside Diameter: 2.8438" (72.233mm) |
| Width Dimension:1.000 (25.40mm) |
| Shaft Fillet Radii: OD 0.09" (2.3mm) |
| Bearing Material: Steel |
359A/354X Tapered Roller Bearing – TS (Tapered Single) Imperial. This is the most basic and most widely used type of tapered roller bearing.

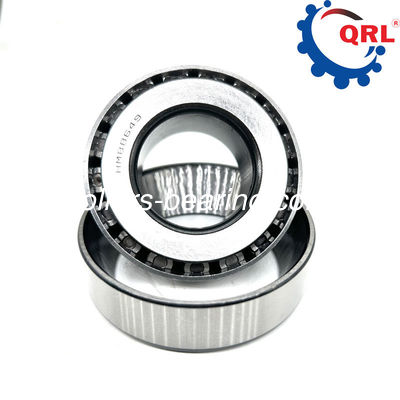

It consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring).
It is typically mounted in opposing pairs on a shaft.
Tapered Roller Bearing Product number
| TOYOTA | 90366-40016 | KOYO | 33008 JR |
| TOYOTA | 90366-40016 | KOYO | TRA 080702 |
| TOYOTA | 90366-40059 | KOYO | ST4090-N |
| TOYOTA | 90366-40064 | NACHI | 40KB681A1 |
| TOYOTA | 90366-40064 | KOYO | 33008 JR |
| TOYOTA | 90366-40077 | NSK | R 40-24SB |
| TOYOTA | 90366-40088 | KOYO | 30308 DJR |
| TOYOTA | 90366-40094 | NACHI | 40KB722 |
| TOYOTA | 90366-40094 | TIMKEN | NP014119/NP419902 |
| TOYOTA | 90366-40097 | NACHI | 40KC683 |
| TOYOTA | 90366-44001 | NACHI | 44KB721 |
| TOYOTA | 90366-45001 | KOYO | 30309DJR |
| TOYOTA | 90366-45016 | KOYO | 32211JR |
| TOYOTA | 90366-45035 | NSK | R45-33g |
| TOYOTA | 90366-48001 | KOYO | ST4890 |
| TOYOTA | 90366-48002 | KOYO | ST4870 |
| TOYOTA | 90366-50001 | NACHI | 50 KB8301 |
| TOYOTA | 90366-50007 | KOYO | TR100802-2 |
| TOYOTA | 90366-50054 | NACHI | 32010 JA1 |
| TOYOTA | 90366-50087 | KOYO | 32010JA1/50KB102 |
| TOYOTA | 90366-51001 | KOYO | ST5186LFT |
| TOYOTA | 90366-54011 | KOYO | ST5487-N |
Correct method of bearing installation
When press-fitting a bearing using a manual press or the like, it is first necessary to calculate the pressing-in force based on the interference between the shaft and the inner ring (a hydraulic press with an operating pressure greater than the required pressure must be used). Then, when pressing in the inner ring, use the inner ring pressing tool to firmly press it into the shaft shoulder (do not apply force to the outer ring). After pressing in, measure the accuracy of each part of the bearing to confirm whether it is indeed installed on the shaft. In addition, when using multi-row bearings in combination, the runout should be measured after assembly to correct the axis deviation between the outer rings.
