Product Details:
|

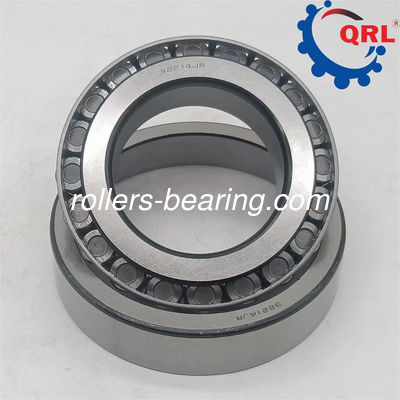

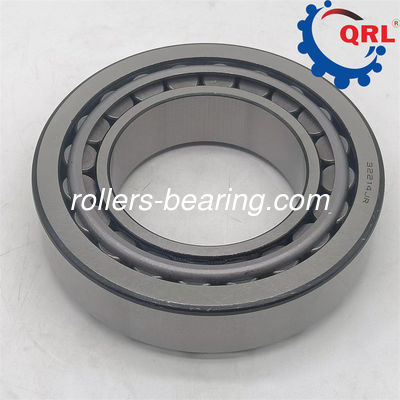

| Type: | Tapered Roller Bearing | Inch: | 70x125x33.25 Mm |
|---|---|---|---|
| Number Of Row: | HR 32214 J | Roller Bearing Type: | Auto Bearings |
| Brand Name:: | OEM-QRL | Weight: | 1.56KG |
| Application: | Machinery | Stock: | 20000pcs |
| High Light: | 32214 Tapered Roller Bearings,Tapered Roller Bearings 70x125x33.25 mm |
||
| Bore diameter (mm) | Out diameter (mm) | Weight (Kg) |
|---|---|---|
| 70.00 | 125.00 | 1.56 |
A tapered roller bearing is a unit that consists of both tapered raceways (inner and outer rings), and tapered rollers. The construction is intended for combination loads, such as dual acting axial and radial loads.
Tapered Roller Bearing Product number
| Part No. | BOUNDARY DIMENSIONS (in m.m.) | LOAD RATING | LIMITING SPEED (R.P.M.) | MASS | ||||||
| d | D | B | C | T | STATIC (Co) KN | DYNAMIC (C) KN | Grease | Oil | (~ Kg.) | |
| 33111 | 55 | 95 | 30 | 23 | 30 | 155.1 | 110.7 | 3800 | 5000 | 0.897 |
| 30211 | 55 | 100 | 21 | 18 | 22.75 | 90.2 | 79.9 | 3600 | 4900 | 0.675 |
| 32211 | 55 | 100 | 25 | 21 | 26.75 | 133.9 | 108 | 3800 | 5000 | 0.83 |
| 32211J2/Q | 55 | 100 | 25 | 21 | 26.75 | 135 | 109 | 4,050 | 6,700 | 0.87 |
| 33211 | 55 | 100 | 35 | 27 | 35 | 190 | 138 | 3300 | 4300 | 1.2 |
| 32310/55 | 55 | 110 | 40 | 33 | 42.25 | 212 | 172 | 3200 | 4300 | 1.7 |
| 31311 (30311D) | 55 | 120 | 29 | 21 | 31.5 | 144.2 | 126.6 | 2900 | 3800 | 1.55 |
| 30311 | 55 | 120 | 29 | 25 | 31.75 | 179 | 155 | 3200 | 4300 | 1.66 |
| 33012 | 60 | 95 | 27 | 21 | 27 | 145.4 | 93.5 | 3700 | 4900 | 0.68 |
| 30312 | 60 | 110 | 22 | 19 | 23.75 | 124.9 | 105 | 3400 | 4500 | 0.95 |
| 32212 | 60 | 110 | 28 | 24 | 29.75 | 160.5 | 127.5 | 3400 | 4500 | 1.18 |
| X32212 | 60 | 110 | 28 | 24 | 29.75 | 159.9 | 110.4 | 3400 | 4500 | 1.186 |
| 31312F | 60 | 130 | 31 | 22 | 33.5 | 178.4 | 153.2 | 2600 | 3600 | 1.9 |
| 30312 | 60 | 130 | 31 | 26 | 33.5 | 209.8 | 180.1 | 3000 | 4000 | 2.03 |
| 31312L | 60 | 135 | 31 | 22 | 33.5 | 178.4 | 153.2 | 2600 | 3600 | 2.12 |
Correct method of bearing installation
When press-fitting a bearing using a manual press or the like, it is first necessary to calculate the pressing-in force based on the interference between the shaft and the inner ring (a hydraulic press with an operating pressure greater than the required pressure must be used). Then, when pressing in the inner ring, use the inner ring pressing tool to firmly press it into the shaft shoulder (do not apply force to the outer ring). After pressing in, measure the accuracy of each part of the bearing to confirm whether it is indeed installed on the shaft. In addition, when using multi-row bearings in combination, the runout should be measured after assembly to correct the axis deviation between the outer rings.
