Product Details:
|
| Type: | Mounted Outer Spherical Bearings | Name: | Round Flanged Bearing |
|---|---|---|---|
| Number: | UCT206 | Application: | FOR |
| Precision Rating: | High Precision | Origin: | China |
| Item Weight: | 1.53 Ounces | Material: | Stainless Steel |
| Package: | Plastic Bag + Cardboard Box | ||
| High Light: | UCT206 Take Up Housed Bearing Unit,High Precision Bearing Unit |
||

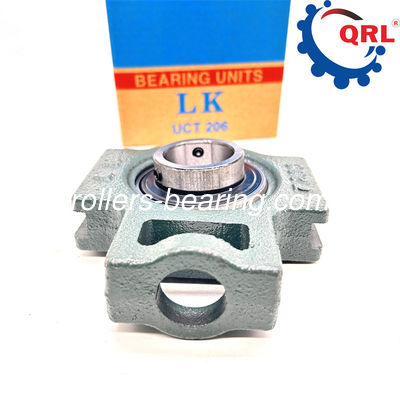

UCT206 Take Up Housed Bearing Unit 30.00mm x 113.00mm x 89.00mm
Mounted outer spherical bearings Specification
Bearing number : UCT206
Brand : QRL
Bore Diameter (mm) : 30
Mounted outer spherical bearings Description
UCFC212 FYH Bearing Round flanged Mounted Bearing Cylindrical bore (with set screws) 60mm Inner Diameter Bearing This four-bolt flange cartridge unit has a round cartridge on the backside of the flange which allows for precise mounting and alignment.Application are Rotating drum, rotating roller and areas where precise mounting accuracy is required
Mounted outer spherical bearings Product number
| Typ | Shaft | Dimensions in mm | |||||||
| -D | |||||||||
| in mm | o | g | p | q | s | b | k | e | |
| UCT201 | 12 | 16 | 10 | 51 | 32 | 19 | 51 | 12 | 76 |
| UCT202 | 15 | 16 | 10 | 51 | 32 | 19 | 51 | 12 | 76 |
| UCT203 | 17 | 16 | 10 | 51 | 32 | 19 | 51 | 12 | 76 |
| UCT204 | 20 | 16 | 10 | 51 | 32 | 19 | 51 | 12 | 76 |
| UCT205 | 25 | 16 | 10 | 51 | 32 | 19 | 51 | 12 | 76 |
| UCT206 | 30 | 16 | 10 | 56 | 37 | 22 | 57 | 12 | 89 |
| UCT207 | 35 | 16 | 13 | 64 | 37 | 22 | 64 | 12 | 89 |
| UCT208 | 40 | 19 | 16 | 83 | 49 | 29 | 83 | 16 | 102 |
| UCT209 | 45 | 19 | 16 | 83 | 49 | 29 | 83 | 16 | 102 |
| UCT210 | 50 | 19 | 16 | 83 | 49 | 29 | 86 | 16 | 102 |
| UCT211 | 55 | 25 | 19 | 102 | 64 | 35 | 95 | 22 | 130 |
| UCT212 | 60 | 32 | 19 | 102 | 64 | 35 | 102 | 22 | 130 |
| UCT213 | 65 | 32 | 21 | 111 | 70 | 41 | 121 | 26 | 151 |
| UCT214 | 70 | 32 | 21 | 111 | 70 | 41 | 121 | 26 | 151 |
| UCT215 | 75 | 32 | 21 | 111 | 70 | 41 | 121 | 26 | 151 |
| UCT216 | 80 | 32 | 21 | 111 | 70 | 41 | 121 | 26 | 165 |
| UCT217 | 85 | 38 | 29 | 124 | 73 | 48 | 157 | 30 | 173 |
| UCT218 | 90 | 40 | 40 | 130 | 80 | 48 | 140 | 30 | 190 |
Mounted outer spherical bearings Delivery
1 What is the MOQ?
Any quantity is ok. We are in stock.
2 How many days about the delivery time?
Within 5-30 days after receiving the payment.
3 What is the payment?
By L/C, T/T, Western union,MoneyGram or PayPal.
4 Why choose us?
We provide high quality products as well as good service and favourable price.
5 Do you have factory of your own?
Yes we have, and welcome visiting at any time.
6 Where is your main market?
We mainly market in North America ,South America, Europe,Russia, Middle east,South Asia etc.
