Product Details:
|

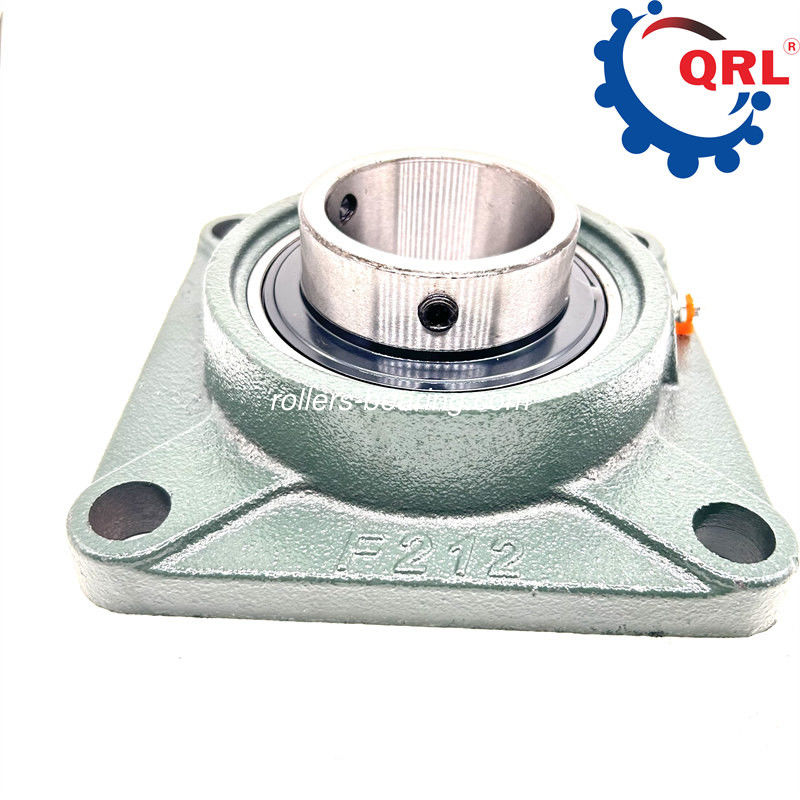

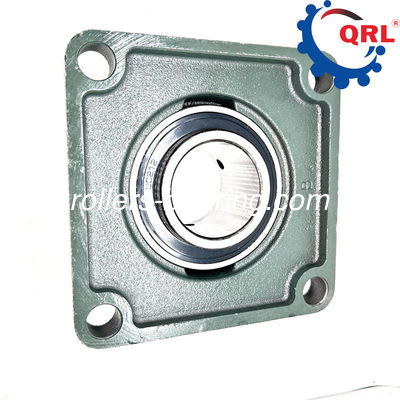

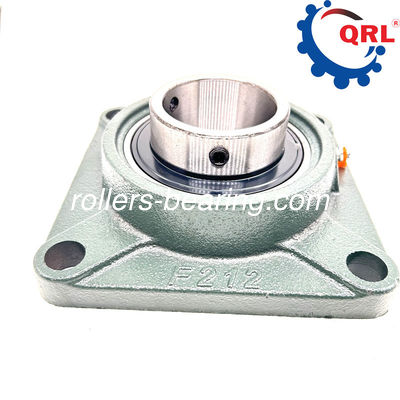

| Type: | Mounted Outer Spherical Bearings | Name: | Round Flanged Bearing |
|---|---|---|---|
| Number: | UCF 212 | Application: | FOR |
| Precision Rating: | High Precision | Origin: | China |
| Item Weight: | 3.53 Ounces | Material: | Stainless Steel |
| Package: | Plastic Bag + Cardboard Box | ||
| Highlight: | Square Flanged Ball Bearing Unit,UCF 212 Bearing Unit |
||
| D | 60 mm |
| L | 175 mm |
| A | 48 mm |
| J | 143 mm |
| N | 19 mm |
| A1 | 18 mm |
Mounted outer spherical bearings Description
The outer casing is a structure with a spherical groove that secures the inner bearing and provides mounting and connection points. The main feature of a spherical bearings is its ability to rotate and tilt in multiple axes.
Mounted outer spherical bearings Product number
| Typ | Shaft | Dimensions in mm | |||||||
| -D | |||||||||
| in mm | o | g | p | q | s | b | k | e | |
| UCT201 | 12 | 16 | 10 | 51 | 32 | 19 | 51 | 12 | 76 |
| UCT202 | 15 | 16 | 10 | 51 | 32 | 19 | 51 | 12 | 76 |
| UCT203 | 17 | 16 | 10 | 51 | 32 | 19 | 51 | 12 | 76 |
| UCT204 | 20 | 16 | 10 | 51 | 32 | 19 | 51 | 12 | 76 |
| UCT205 | 25 | 16 | 10 | 51 | 32 | 19 | 51 | 12 | 76 |
| UCT206 | 30 | 16 | 10 | 56 | 37 | 22 | 57 | 12 | 89 |
| UCT207 | 35 | 16 | 13 | 64 | 37 | 22 | 64 | 12 | 89 |
| UCT208 | 40 | 19 | 16 | 83 | 49 | 29 | 83 | 16 | 102 |
| UCT209 | 45 | 19 | 16 | 83 | 49 | 29 | 83 | 16 | 102 |
| UCT210 | 50 | 19 | 16 | 83 | 49 | 29 | 86 | 16 | 102 |
| UCT211 | 55 | 25 | 19 | 102 | 64 | 35 | 95 | 22 | 130 |
| UCT212 | 60 | 32 | 19 | 102 | 64 | 35 | 102 | 22 | 130 |
| UCT213 | 65 | 32 | 21 | 111 | 70 | 41 | 121 | 26 | 151 |
| UCT214 | 70 | 32 | 21 | 111 | 70 | 41 | 121 | 26 | 151 |
| UCT215 | 75 | 32 | 21 | 111 | 70 | 41 | 121 | 26 | 151 |
| UCT216 | 80 | 32 | 21 | 111 | 70 | 41 | 121 | 26 | 165 |
| UCT217 | 85 | 38 | 29 | 124 | 73 | 48 | 157 | 30 | 173 |
| UCT218 | 90 | 40 | 40 | 130 | 80 | 48 | 140 | 30 | 190 |
Mounted outer spherical bearings Delivery
1 What is the MOQ?
Any quantity is ok. We are in stock.
2 How many days about the delivery time?
Within 5-30 days after receiving the payment.
3 What is the payment?
By L/C, T/T, Western union,MoneyGram or PayPal.
4 Why choose us?
We provide high quality products as well as good service and favourable price.
5 Do you have factory of your own?
Yes we have, and welcome visiting at any time.
6 Where is your main market?
We mainly market in North America ,South America, Europe,Russia, Middle east,South Asia etc.
