Product Details:
|

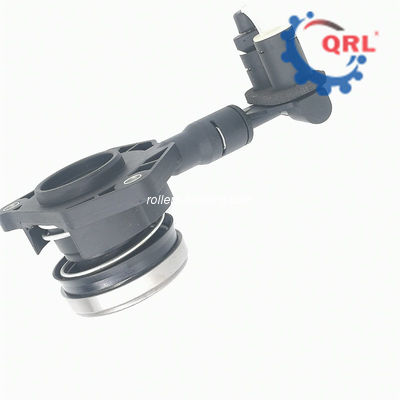

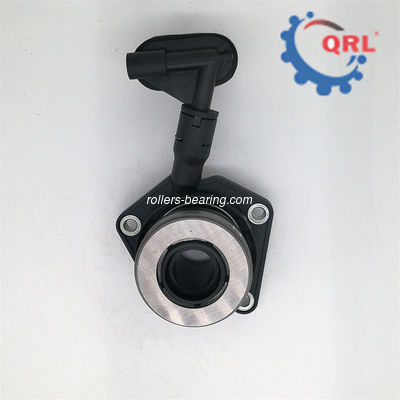

| Type: | Clutch Release Bearing | Applicable Models: | For C-Max Mondeo C30 V50 |
|---|---|---|---|
| Number: | 30759883 | Product Name: | 7G91-7A564-AB |
| Size: | Standard Size | Weight: | 1.1 Kg/pcs |
| Certification: | ISO9001:2008 | Brand: | Oem/QRL |
| High Light: | 30759883mm Clutch Slave Cylinder,7G917A564AB Clutch Slave Cylinder,C30 V50 Clutch Slave Cylinder |
||
Focus 2012 MK II [2004-2012] Estate 1.4 Estate 1388ccm 80HP 59KW (Petrol)
Focus 2012 MK II [2004-2012] Estate 1.6 Ti Estate 1596ccm 115HP 85KW (Petrol)
Focus 2012 MK II [2004-2012] Estate 1.8 FlexFuel Estate 1798ccm 125HP 92KW (Petrol/Ethanol)
Focus 2012 MK II [2004-2012] Hatchback 1.4 Hatchback 1388ccm 80HP 59KW (Petrol)
Focus 2012 MK II [2004-2012] Hatchback 1.6 Hatchback 1596ccm 10 0HP 74KW (Petrol)
Focus 2012 MK II
Focus 2012 MK II [ 2004-2012] Hatchback 1.6 Ti Hatchback 1596ccm 115HP 85KW (Petrol)
Clutch Release Bearing Description
Step on the clutch master cylinder - the hydraulic oil is escorted from the master cylinder cylinder to the clutch wheel pump - the wheel pump pushes the push rod forward when it is under pressure - resists the shift fork - the shift fork pushes the clutch pressure plate - (note that at this time, if the shift fork is different from If the clutch pressure plate that is rotating at high speed is combined, a bearing must be needed to eliminate the heat and resistance generated by direct friction, so the bearing installed in this position is called a release bearing) - The release bearing pushes the pressure plate to separate it from the friction plate and then cuts off power from the crankshaft.
Clutch Release Bearing Product number
| QRL No. | Parts No. | NSK | NTN | KOYO | NACHI |
| QRLMSB/1 | MD702241 | TK45-4BU3 | SF0914/4E | RCT45-1S | 45TMK-1 |
| QRLMSB/2 | MD701283 | 24TK308B2 | SF0816/2E | RCT38SL1 | BC12S4SB |
| QRLMSB/3 | MD706180 | 48TKA3201 | FCR48-11/2E | RCT322SA | 48SCRN32K |
| QRLMSB/4 |
MD719469 MR195689 |
FCR55-17-8.9.10. 11/2E |
RCTS325SA | ||
| QRLMSB/5 | MD703270 | 55TKA3201 | FCR55-1/2E | RCTS324SA | |
| QRLMSB/6 |
ME602710 ME600576 ME605584 |
58TKA3702U3 58TKA3703/B |
RCT371SA | ||
| QRLMSB/7 | ME620330 | TK55-1A1U3 | 55TMK804X/2E | CT55BL1 | 55TMK804 |
| QRLMSB/8 | 03452-21001/3/84/85 | TK70-1A1U3 | SF1412/2E | CT70B/L1 | 70TNK-1 |
| QRLMSB/9 | MR145619 |
FCR54-60-10/2E FCR54-60-13/2E |
|||
| QRLMSB/10 | ME615140 | RCT4700SA | |||
| QRLMSB/11 | MN171419 | RCT3200SA1 |
Clutch Release Bearing Delivery
Before the contract is placed, the Payment, LASER MARK, plastic bag, box, sticker, carton, carton mark, pallet should be discussed into details. After the order is placed, the products must be manufactured as description. Best quality with acceptable price is our service for all customers. as the deadline is coming, after the payment, the packed goods would be sent to the right place.
