Product Details:
|
| Type: | Taper Roller Bearing | Dimensions: | 32221 |
|---|---|---|---|
| Brand Name:: | OEM-QRL | Service:: | OEM Customized Services |
| Weight: | 2.5 Kg | Application:: | Engineering Machinery |
| Precision Rating: | P0 P6 P5 P4 P2 | Number Of Row: | Single Row |
| Highlight: | 105x190x53 Taper Roller Bearings,Metric Taper Roller Bearings |
||
Inside Diameter 105.00mm
Outside Diameter 190.00mm
Width 53mm
Cone Width 50mm
Cup Width 43mm

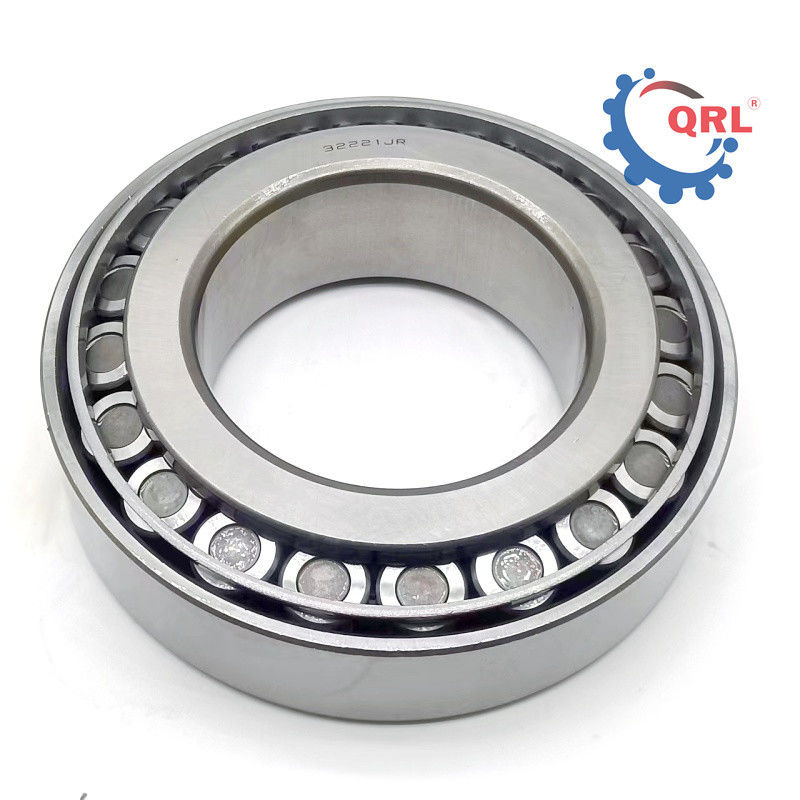

Taper Roller Bearing Description

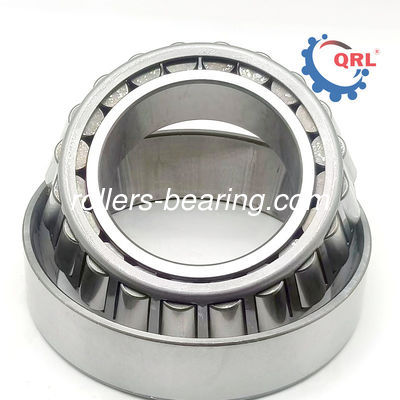

Tapered roller bearings are separable into a cone assembly and a cup. The non-separable cone assembly consists of the inner ring, the rollers, and a cage that retains and evenly spaces the rollers. The cup is simply the outer ring.
Tapered Roller Bearing Product number
| TOYOTA | 90366-40016 | KOYO | 33008 JR |
| TOYOTA | 90366-40016 | KOYO | TRA 080702 |
| TOYOTA | 90366-40059 | KOYO | ST4090-N |
| TOYOTA | 90366-40064 | NACHI | 40KB681A1 |
| TOYOTA | 90366-40064 | KOYO | 33008 JR |
| TOYOTA | 90366-40077 | NSK | R 40-24SB |
| TOYOTA | 90366-40088 | KOYO | 30308 DJR |
| TOYOTA | 90366-40094 | NACHI | 40KB722 |
| TOYOTA | 90366-40094 | TIMKEN | NP014119/NP419902 |
| TOYOTA | 90366-40097 | NACHI | 40KC683 |
| TOYOTA | 90366-44001 | NACHI | 44KB721 |
| TOYOTA | 90366-45001 | KOYO | 30309DJR |
| TOYOTA | 90366-45016 | KOYO | 32211JR |
| TOYOTA | 90366-45035 | NSK | R45-33g |
| TOYOTA | 90366-48001 | KOYO | ST4890 |
| TOYOTA | 90366-48002 | KOYO | ST4870 |
| TOYOTA | 90366-50001 | NACHI | 50 KB8301 |
| TOYOTA | 90366-50007 | KOYO | TR100802-2 |
| TOYOTA | 90366-50054 | NACHI | 32010 JA1 |
| TOYOTA | 90366-50087 | KOYO | 32010JA1/50KB102 |
| TOYOTA | 90366-51001 | KOYO | ST5186LFT |
| TOYOTA | 90366-54011 | KOYO | ST5487-N |
Taper Roller Bearings Applications
Tapered roller bearings feature a cup and cone assembly. The cup is comprised of the outer ring and the cone assembly consists of inner ring, rollers, and cage. This bearing construction accommodates combined loads and provides low friction during operation. By adjusting one single row tapered roller bearing against a second tapered roller bearing and applying a preload, a rigid bearing application can be achieved.
