Product Details:
|
| Type: | Taper Roller Bearing | Dimensions: | 25590/25520 25590/20 |
|---|---|---|---|
| Brand Name:: | OEM-QRL | Service:: | OEM Customized Services |
| Weight: | 0.8 Kg | Application:: | Engineering Machinery |
| Number Of Row: | Single Row | Size: | 45.61×82.93×23.81mm |
| High Light: | 45.61×82.93×23.81mm Tapered Roller Bearing,25590/20 Tapered Roller Bearing |
||

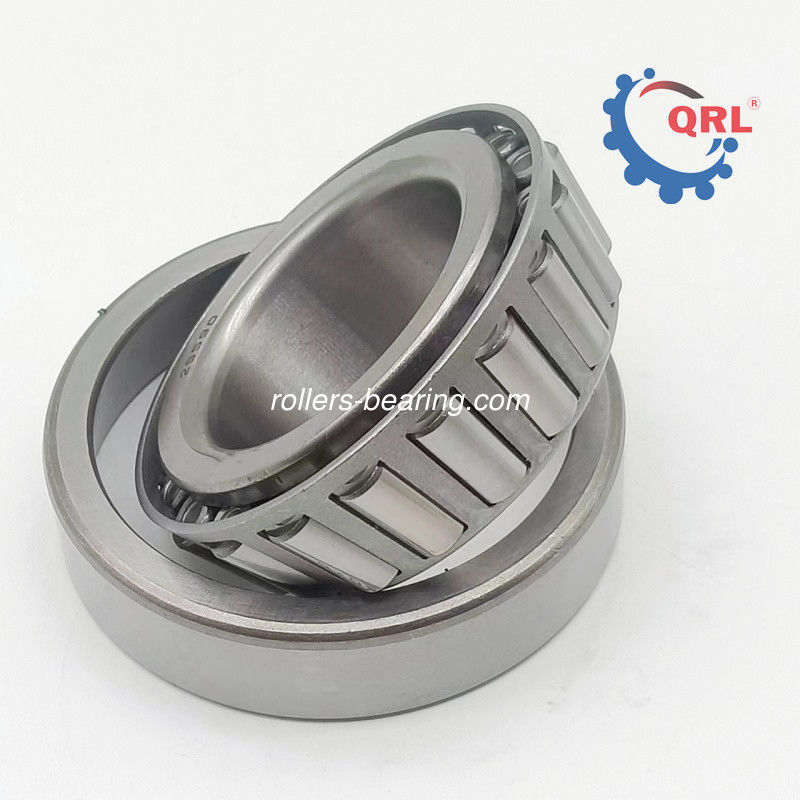

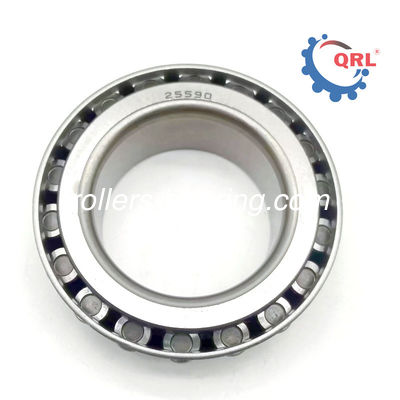

25590/25520 Tapered Roller Bearing – TS (Tapered Single) Imperial. This is the most basic and most widely used type of tapered roller bearing.
It consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring).
It is typically mounted in opposing pairs on a shaft.
Taper Roller Bearing Description
Tapered roller bearings are separable into a cone assembly and a cup. The non-separable cone assembly consists of the inner ring, the rollers, and a cage that retains and evenly spaces the rollers. The cup is simply the outer ring.
Tapered Roller Bearing Product number
| 32019X | 95 | 145 | 32 | 24 | 32 | 280.1 | 173 | 2300 | 3100 | 1.89 |
| 33019 | 95 | 145 | 39 | 46 | 39 | 350 | 211.6 | 2300 | 3100 | 2.315 |
| 32219 | 95 | 170 | 43 | 37 | 45.5 | 390 | 281 | 1900 | 2800 | 4.05 |
| 31319(30319D) | 95 | 200 | 45 | 32 | 49.5 | 355 | 298.3 | 1700 | 2200 | 6.95 |
| 32020L | 100 | 150 | 29 | 25 | 32 | 251.5 | 163.8 | 2200 | 3000 | 1.81 |
| 33020 | 100 | 150 | 39 | 32.5 | 39 | 375 | 230 | 2200 | 3200 | 2.4 |
| 32220 | 100 | 180 | 46 | 39 | 49 | 465 | 331 | 2000 | 2700 | 4.92 |
| 32220J2 | 100 | 180 | 63 | 48 | 63 | 660 | 430 | 2,650 | 3,900 | 6.77 |
| 33021 | 105 | 160 | 43 | 34 | 43 | 430 | 246 | 1900 | 2800 | 3.05 |
| 3022X/105 | 105 | 170 | 38 | 29 | 38 | 388 | 236 | 2000 | 2700 | 3.32 |
Taper Roller Bearings Applications
Tapered roller bearings feature a cup and cone assembly. The cup is comprised of the outer ring and the cone assembly consists of inner ring, rollers, and cage. This bearing construction accommodates combined loads and provides low friction during operation. By adjusting one single row tapered roller bearing against a second tapered roller bearing and applying a preload, a rigid bearing application can be achieved.
