Product Details:
|

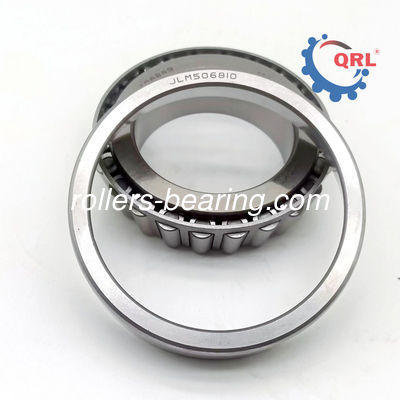

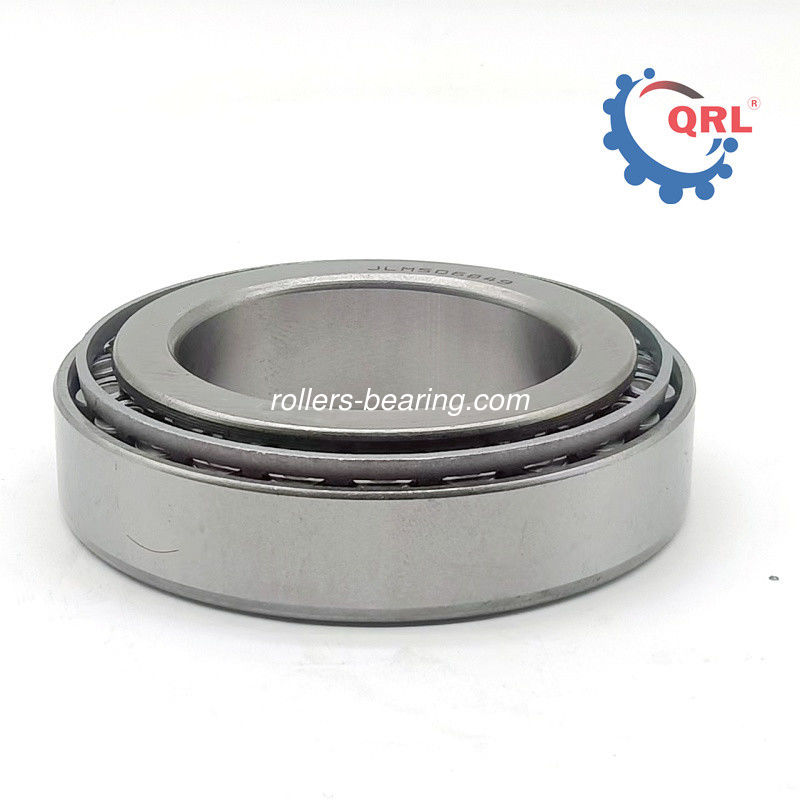

| Type: | Taper Roller Bearing | Dimensions: | JLM506849/JLM506810 |
|---|---|---|---|
| Brand Name:: | OEM-QRL | Service:: | OEM Customized Services |
| Weight: | 0.93 Kg | Application:: | Engineering Machinery |
| Number Of Row: | Single Row | Size: | 55x90x23 Mm |
| High Light: | JLM506849/JLM506810 Tapered roller bearings,JLM506849/10 Tapered roller bearings,55x90x23 Tapered roller bearings |
||
| Reference | 506849 506810 |
| Brand | QRL |
| Inside Diameter | 2.165" |
| Outside Diameter | 3.543" |
| Width | 0.728" |
| Weight (KG) | 0.54 |
Tapered roller bearings are separable into a cone assembly and a cup. The non-separable cone assembly consists of the inner ring, the rollers, and a cage that retains and evenly spaces the rollers. The cup is simply the outer ring.
Tapered Roller Bearing Product number
| 32019X | 95 | 145 | 32 | 24 | 32 | 280.1 | 173 | 2300 | 3100 | 1.89 |
| 33019 | 95 | 145 | 39 | 46 | 39 | 350 | 211.6 | 2300 | 3100 | 2.315 |
| 32219 | 95 | 170 | 43 | 37 | 45.5 | 390 | 281 | 1900 | 2800 | 4.05 |
| 31319(30319D) | 95 | 200 | 45 | 32 | 49.5 | 355 | 298.3 | 1700 | 2200 | 6.95 |
| 32020L | 100 | 150 | 29 | 25 | 32 | 251.5 | 163.8 | 2200 | 3000 | 1.81 |
| 33020 | 100 | 150 | 39 | 32.5 | 39 | 375 | 230 | 2200 | 3200 | 2.4 |
| 32220 | 100 | 180 | 46 | 39 | 49 | 465 | 331 | 2000 | 2700 | 4.92 |
| 32220J2 | 100 | 180 | 63 | 48 | 63 | 660 | 430 | 2,650 | 3,900 | 6.77 |
| 33021 | 105 | 160 | 43 | 34 | 43 | 430 | 246 | 1900 | 2800 | 3.05 |
| 3022X/105 | 105 | 170 | 38 | 29 | 38 | 388 | 236 | 2000 | 2700 | 3.32 |
Taper Roller Bearings Applications
Tapered roller bearings feature a cup and cone assembly. The cup is comprised of the outer ring and the cone assembly consists of inner ring, rollers, and cage. This bearing construction accommodates combined loads and provides low friction during operation. By adjusting one single row tapered roller bearing against a second tapered roller bearing and applying a preload, a rigid bearing application can be achieved.
