Product Details:
|
| Type: | Taper Roller Bearing | Size: | 90x150x45mm |
|---|---|---|---|
| Dimensions: | 33118 33118 JR | Brand Name:: | OEM-QRL |
| Service:: | OEM Customized Services | Weight: | 2.75 Kg |
| Application:: | Engineering Machinery | Number Of Row: | Single Row |
| Highlight: | 33118 Tapered Roller Bearing,Tapered Roller Bearing 90x150x45mm |
||
Tapered Roller Bearing Specification
| Weight [kg] | 3.11 |
| Inner diameter [mm] | 90 |
| Outer diameter [mm] | 150 |
| Width [mm] | 45 |
| Category | Tapered roller bearings |
| Seal | None |
| Radial Clearance | Normal |
| Bore | Cylindrical |
| Special | Nothing |
| Customs tariff no. | 84822000 |
Taper Roller Bearing Description

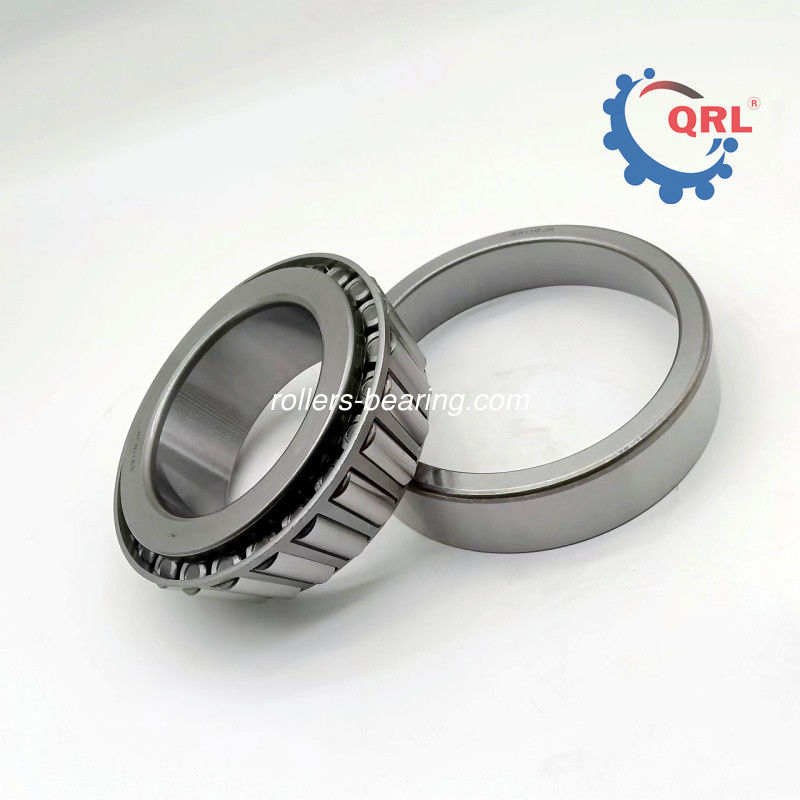

Tapered roller bearings are separable into a cone assembly and a cup. The non-separable cone assembly consists of the inner ring, the rollers, and a cage that retains and evenly spaces the rollers. The cup is simply the outer ring.
Tapered Roller Bearing Product number
| 32019X | 95 | 145 | 32 | 24 | 32 | 280.1 | 173 | 2300 | 3100 | 1.89 |
| 33019 | 95 | 145 | 39 | 46 | 39 | 350 | 211.6 | 2300 | 3100 | 2.315 |
| 32219 | 95 | 170 | 43 | 37 | 45.5 | 390 | 281 | 1900 | 2800 | 4.05 |
| 31319(30319D) | 95 | 200 | 45 | 32 | 49.5 | 355 | 298.3 | 1700 | 2200 | 6.95 |
| 32020L | 100 | 150 | 29 | 25 | 32 | 251.5 | 163.8 | 2200 | 3000 | 1.81 |
| 33020 | 100 | 150 | 39 | 32.5 | 39 | 375 | 230 | 2200 | 3200 | 2.4 |
| 32220 | 100 | 180 | 46 | 39 | 49 | 465 | 331 | 2000 | 2700 | 4.92 |
| 32220J2 | 100 | 180 | 63 | 48 | 63 | 660 | 430 | 2,650 | 3,900 | 6.77 |
| 33021 | 105 | 160 | 43 | 34 | 43 | 430 | 246 | 1900 | 2800 | 3.05 |
| 3022X/105 | 105 | 170 | 38 | 29 | 38 | 388 | 236 | 2000 | 2700 | 3.32 |
Taper Roller Bearings Applications
Tapered roller bearings feature a cup and cone assembly. The cup is comprised of the outer ring and the cone assembly consists of inner ring, rollers, and cage. This bearing construction accommodates combined loads and provides low friction during operation. By adjusting one single row tapered roller bearing against a second tapered roller bearing and applying a preload, a rigid bearing application can be achieved.
