6010-2Z Radial Ball Bearing Double Shielded Bore Dia 50mm

6010-2Z Radial Ball Bearing Double Shielded Bore Dia 50mm
6010-2Z Radial Ball Bearing Double Shielded Bore Dia 50mm
6010-2Z Radial Ball Bearing Double Shielded Bore Dia 50mm 6010-2Z Radial Ball Bearing Double Shielded Bore Dia 50mm 6010-2Z Radial Ball Bearing Double Shielded Bore Dia 50mm

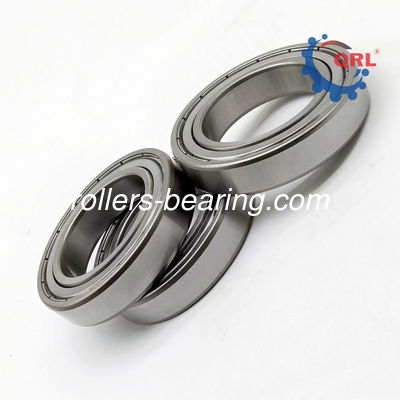

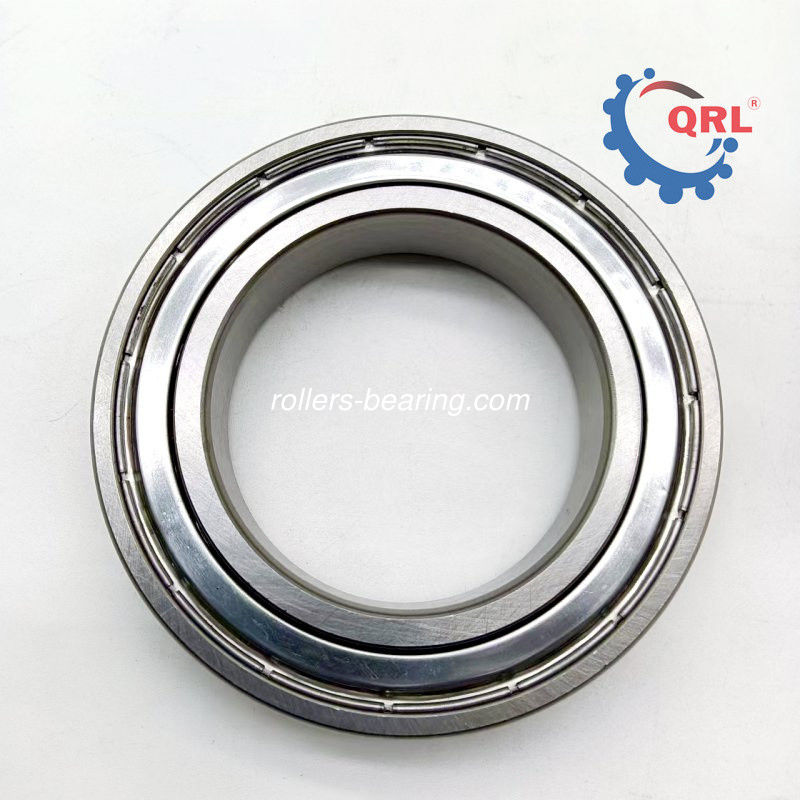

Large Image :  6010-2Z Radial Ball Bearing Double Shielded Bore Dia 50mm

Product Details:
Place of Origin: CHINA
Brand Name: QRL
Certification: ISO9001/2008
Model Number: 6010-2Z
Payment & Shipping Terms:
Minimum Order Quantity: 100
Packaging Details: Carton/woven bag
Delivery Time: 5-15 Working Depends on the quantity
Payment Terms: D/P, D/A, L/C, T/T, Western Union
Supply Ability: 8000pcs

6010-2Z Radial Ball Bearing Double Shielded Bore Dia 50mm

Description
Type: Deep Groove Ball Bearing Number: 6010-2Z
Size: 50x80x16 Mm Seals Type: ZZ
WEIGHT: 0.5 Kg/pc Clearance: C6
Application: All Types Crane Service: OEM Customized Services
High Light:

50mm 6010-2Z Radial Ball Bearing

,

6010-2Z Radial Ball Bearing

6010-2Z Radial Ball Bearing Double Shielded Bore Dia 50mm

Deep Groove Ball Bearing Specification

Shielded (2Z) bearings are fitted with two metal dust shields to prevent the ingress of dirt and foreign matter. 2RZ bearings are 2Z bearings fitted with two low friction seals.
Deep groove ball bearings are versatile and robust in operation, they also require little maintenance. Deep groove ball bearings are the most widely used bearing type due to their simple design and suitability for high speeds.



Deep Groove Ball Bearing Description



Deep-groove types may have a flanged outer ring, special inner ring width, thin-walled cross-sections, or a special shape for synchros. These bearings can come open, sealed, or shielded. An assortment of models suit both general and special applications. Available in open, sealed, and shielded types.



Deep Groove Ball Bearing Product number



Bearing NO (mm)Boundary Dimensions (Kn) (Kn) (r/min)
Limit Rotational Speed
d D B Dynamic Load Rating Static Load Rating Grease Lubrication Oil Lubrication (Kg)
Cr Cor Weight
6900 10 22 6 2.7 1.27 32000 38000 0.01
6901 12 24 6 2.91 1.46 30000 36000 0.011
6902 15 28 7 4.35 2.26 26000 30000 0.016
6903 17 30 7 4.6 2.55 24000 28000 0.016
6904 20 37 9 6.4 3.7 19000 22000 0.0358
6905 25 42 9 7.05 4.55 16000 19000 0.0409
6906 30 47 9 7.25 5 14000 17000 0.0513
6907 35 55 10 10.6 7.25 12000 15000 0.078
6908 40 62 12 13.7 10 11000 13000 0.112
6909 45 68 12 14.1 10.9 9500 12000 0.14
6910 50 72 12 14.5 11.7 9000 11000 0.14
6911 55 80 13 16 13.3 8000 9500 0.179
6912 60 85 13 16.5 14.3 7500 9000 0.193
6913 65 90 13 17.4 16.1 7100 8500 0.206



Deep Groove Ball Bearing Applications



1. Material handling machinery:mining machinery, textile machinery, lifting equipment, Agricultural machinery: tractors, harvesting machinery, etc.

2. Heavy-duty mining machinery: metallurgical machinery, mining machinery, lifting machinery, loading and unloading machinery, industrial vehicles, cement equipment, etc.

3. Construction Machinery: forklifts, earth moving machinery, compaction machinery, concrete machinery, etc.

4. The general petrochemical machinery: oil drilling machinery, oil refining machinery, chemical machinery, gas compressors, paper machinery, printing machinery, etc.

5. Machine tools: forging machinery, foundry machinery, woodworking machinery, etc.

6. Car: truck, road, bus, car, modified car, motorcycle ,etc.



6010-2Z Radial Ball Bearing Double Shielded Bore Dia 50mm 06010-2Z Radial Ball Bearing Double Shielded Bore Dia 50mm 1

6010-2Z Radial Ball Bearing Double Shielded Bore Dia 50mm 2
