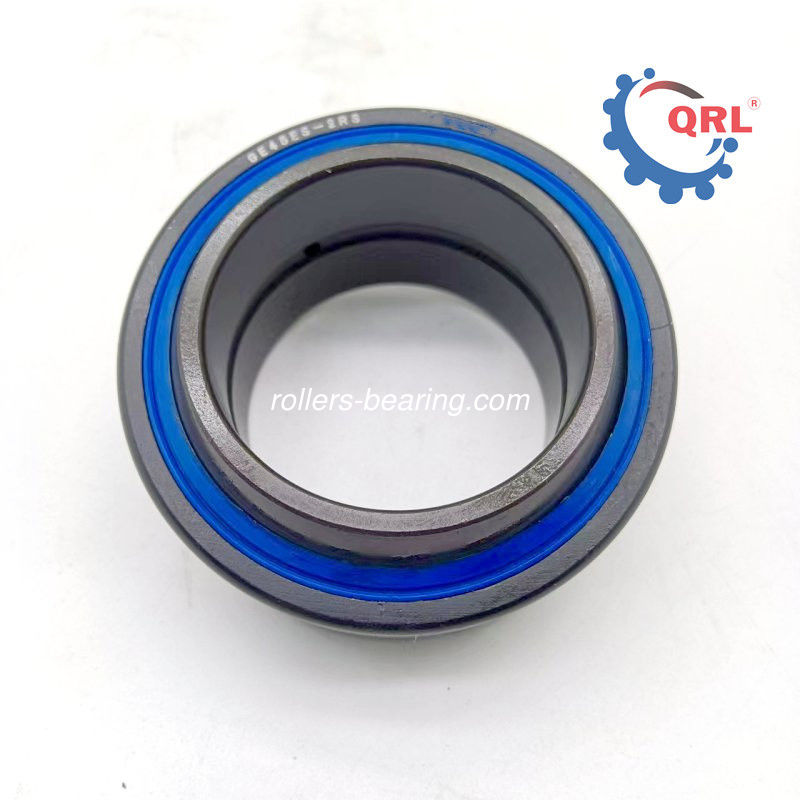

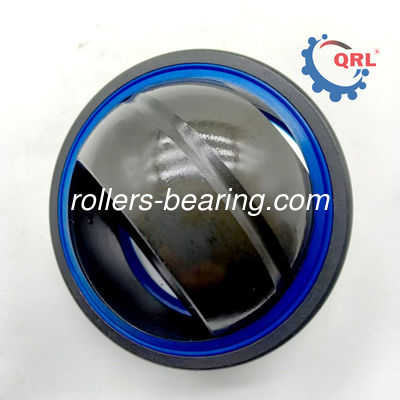

GE 45 ES-2RS Radial Spherical Plain Bearings 45x68x32 Mm

GE 45 ES-2RS Radial Spherical Plain Bearings 45x68x32 Mm
GE 45 ES-2RS Radial Spherical Plain Bearings 45x68x32 Mm
GE 45 ES-2RS Radial Spherical Plain Bearings 45x68x32 Mm GE 45 ES-2RS Radial Spherical Plain Bearings 45x68x32 Mm GE 45 ES-2RS Radial Spherical Plain Bearings 45x68x32 Mm

Large Image :  GE 45 ES-2RS Radial Spherical Plain Bearings 45x68x32 Mm

Product Details:
Place of Origin: CHINA
Brand Name: QRL
Certification: ISO9001/2000
Model Number: GE 45 ES-2RS
Payment & Shipping Terms:
Minimum Order Quantity: 20
Packaging Details: Carton/woven bag
Delivery Time: 1-15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000pcs

GE 45 ES-2RS Radial Spherical Plain Bearings 45x68x32 Mm

Description
Type:: Spherical Plain Bearing Universal Number: GE25ES
Oe No.: GE 45 ES-2RS Product Name: For Automotive
Size: 45x68x32 Mm Precision Rating:: P4 P5 P6 P2
Weight: 0.31 Kg/pcs Place Of Origin:: CHINA
High Light:

45x68x32 spherical plain bearings

,

Radial Spherical Plain Bearings

GE 45 ES-2RS Radial spherical plain bearings 45x68x32 mm


Spherical Plain Bearing Specification



Part Number GE 45 ES
System of Measurement Metric
Bearing Type Plain Bearing
Plain Bearing Type Radial
For Load Direction Combined Radial and Thrust
Inner Ring Shape Groove
Outer Ring Shape Groove
Seal Type Open
Bore Dia 45 mm
Bore Dia Tolerance -0.012mm to 0
Outer Dia 68 mm
Outer Dia Tolerance -0.013mm to 0
Nominal Width 32 mm
Nominal Width Tolerance -0.12mm to 0
Width Outer Ring 25 mm
Width Outer Ring Tolerance -0.3mm to 0
Angle Of Tilt
Raceway Diameter Inner Ring 60 mm



Spherical Plain Bearing Description


The Spherical Bearing is a heavy-duty self-aligning sliding bearing. Highly resistant to impact loads, this product is most fitted to the oscillating section under slow, heavy loads.



Spherical Plain Bearing  Number



Bearing Type Dimensions/mm α/(°)≈
GE…E型 GE…ES GE…DS GE…C GE…ES-2RS d D B C d1≈ dk① rsmin r1smin Other GE…ES-2RS型
GE4E GE4C 4 12 5 3 6 8 0.3 0.3 16
GE5E GE5DS GE5C 5 14 6 4 8 10 0.3 0.3 13
GE6E GE6DS GE6C 6 14 6 4 8 10 0.3 0.3 13
GE8E GESDS GE8C 8 16 8 5 10 13 0.3 0.3 15
GE10E GE10DS GE10C 10 19 9 6 13 16 0.3 0.3 12
GE12E GE12DS GE12C 12 22 10 7 15 18 0.3 0.3 10
GE15ES GE15DS GE15C GE15ES-2RS 15 26 12 9 18 22 0.3 0.3 8 5
GE17ES GE17DS GE17C GE17ES-2RS 17 30 14 10 20 25 0.3 0.3 10 7
GE20ES GE20DS GE20C GE20ES-2RS 20 35 16 12 24 29 0.3 0.3 9 6
GE25ES GE25DS GE25C GE25ES-2RS 25 42 20 16 29 35 0.6 0.6 7 4
GE30ES GE30DS GE30C GE30ES-2RS 30 47 22 18 34 40 0.6 0.6 6 4
GE35ES GE35DS GE35ES-2RS 35 55 25 20 39 47 0.6 1 6 4
GE40ES GE40DS GE40ES-2RS 40 62 28 22 45 53 0.6 1 7 4
GE45ES GE45DS GE45ES-2RS 45 68 32 25 50 60 0.6 1 7 4
GE50ES GE50DS GE50ES-2RS 50 75 35 28 55 66 0.6 1 6 4
GE55ES GE55DS GE55ES-2RS 55 85 40 32 62 74 0.6 1 7
GE60ES GE60DS GE60ES-2RS 60 90 44 36 66 80 1 1 6 3
GE70ES GE70DS GE70ES-2RS 70 105 49 40 77 92 1 1 6 4
GE80ES GE80DS GE80ES-2RS 80 120 55 45 88 105 1 1 6 4
GE90ES GE90DS GE90ES-2RS 90 130 60 50 98 115 1 1 5 3
GE100ES GE100DS GE100ES-2RS 100 150 70 55 109 130 1 1 7 5
GE110ES GE110DS GE110ES-2RS 110 160 70 55 120 140 1 1 6 4
GE120ES GE120DS GE120ES-2RS 120 180 85 70 130 160 1 1 6 4
GE140ES GE140DS GE140ES-2RS 140 210 90 70 150 180 1 1 7 5
GE160ES GE160DS GE160ES-2RS 160 230 105 80 170 200 1 1 8 6
GE180ES GE180DS GE180ES-2RS 180 260 105 80 192 225 1.1 1.1 6 5
GE200ES GE200DS GE200ES-2RS 200 290 130 100 212 250 1.1 1.1 7 6




Spherical Plain Bearing  Delivery


According to different applications, bearings without inner ring or needle roller and cage components can be selected. At this time, the journal surface and shell hole surface matching the bearing are directly used as the inner and outer rolling surfaces of the bearing to ensure the load capacity and running performance Same as the bearing with ring, the hardness, machining accuracy and surface quality of the raceway surface of the shaft or housing hole should be similar to the raceway of the bearing ring. This kind of bearing can only bear radial load.

GE 45 ES-2RS Radial Spherical Plain Bearings 45x68x32 Mm 0GE 45 ES-2RS Radial Spherical Plain Bearings 45x68x32 Mm 1GE 45 ES-2RS Radial Spherical Plain Bearings 45x68x32 Mm 2
