JHM516849/10 Single-row Tapered Roller Bearing 3.3465x5.5118x1.5354 Inch

All Products

Tapered Roller Bearing

(238)

Clutch Release Bearing

(131)

Wheel Hub Bearing

(153)

Universal Joint Bearing

(36)

Deep Groove Ball Bearing

(126)

Cylindrical Roller Bearing

(65)

Needle Roller Bearing

(33)

Tensioner Pulley Bearing

(38)

Drive Shaft Center Bearing

(34)

Wheel Bearing Spacer

(12)

Bearing Accessory

(37)

Thrust Ball Bearing

(10)

Spherical Roller Bearing

(7)
Certification
China Guangzhou Zhonglu Automobile Bearing Co., LTD certification
Customer Reviews
Hello, Miss Zuo, the goods have been received, I look forward to working with you next time, good wishes.

—— Pakistan

Hello, I am very interested in your automobile wheel bearings and automobile release bearings. Please send me your product details. Looking forward to your quick reply. Please feel free to contact me via email. greeting!

—— Mohammed

Hello lady, I am more interested in the wheel bearing unit of Toyota, I hope to get your best price and look forward to your reply.

—— Edward

I'm Online Chat Now

JHM516849/10 Single-row Tapered Roller Bearing 3.3465x5.5118x1.5354 Inch

JHM516849/10 Single-row Tapered Roller Bearing 3.3465x5.5118x1.5354 Inch
JHM516849/10 Single-row Tapered Roller Bearing 3.3465x5.5118x1.5354 Inch
JHM516849/10 Single-row Tapered Roller Bearing 3.3465x5.5118x1.5354 Inch JHM516849/10 Single-row Tapered Roller Bearing 3.3465x5.5118x1.5354 Inch JHM516849/10 Single-row Tapered Roller Bearing 3.3465x5.5118x1.5354 Inch

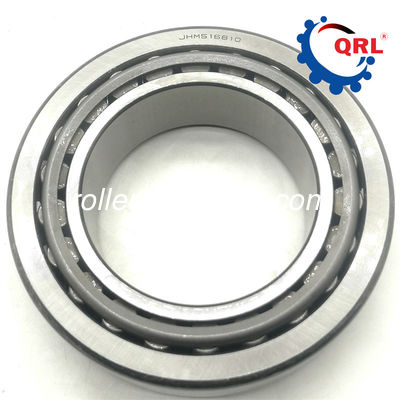

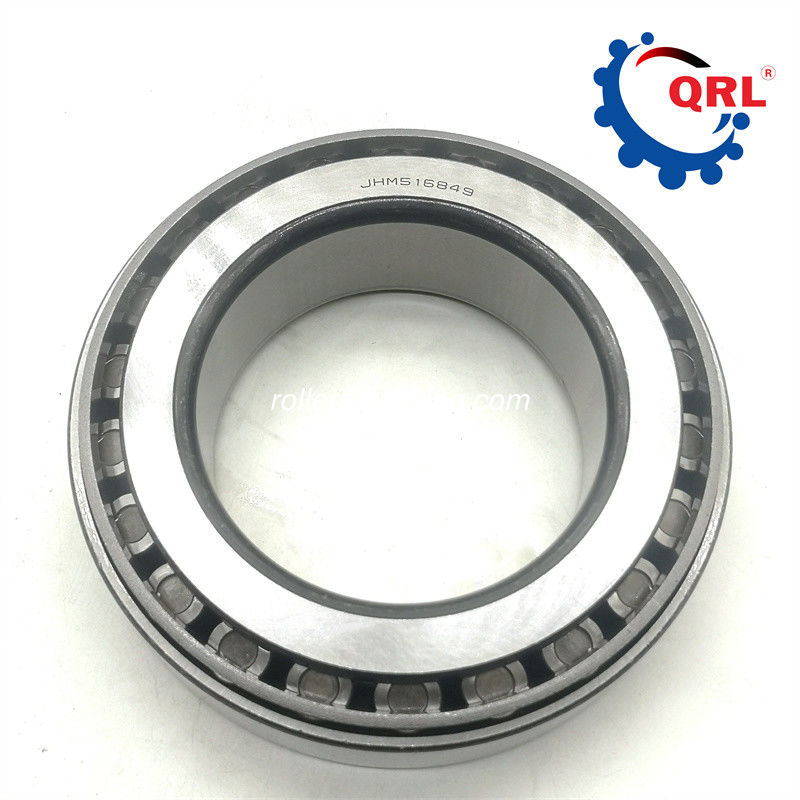

Large Image :  JHM516849/10 Single-row Tapered Roller Bearing 3.3465x5.5118x1.5354 Inch

Product Details:
Place of Origin: CHINA
Brand Name: QRL
Certification: ISO2000/9002
Model Number: JHM516849/10
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: Carton/woven bag
Delivery Time: time by quantity
Payment Terms: L/C, D/A, D/P
Supply Ability: 8000 PCS
Chat Now

JHM516849/10 Single-row Tapered Roller Bearing 3.3465x5.5118x1.5354 Inch

Description
Type: Taper Roller Bearing Dimensions: JHM516849/10
Size: 3.3465x5.5118x1.5354 Inch Brand Name:: OEM-QRL
Application:: Engineering Machinery Weight: 2.55 Kg.
Highlight:

single-row tapered roller bearing

,

JHM516849/10 tapered roller bearing

,

3.3465x5.5118x1.5354 inch tapered roller bearing

JHM516849/10 single-row tapered roller bearing 3.3465x5.5118x1.5354 inch

Tapered Roller Bearing Specification

d(mm) 85
D(mm) 140
T(mm) 39
B(mm) 38
C(mm) 31.5
r(min.)(mm) 3
r1(min.)(mm) 2.5
Basic load ratings : Cr(kN) 254
Basic load ratings : C0r(kN) 308
Fatigue load limit : Cu(kN) 46.4
Limiting speeds(Grease lub.)(min-1) 2700
Limiting speeds(Oil lub.)(min-1) 3500
Load center spread : a(mm) 32.8
Constant :e() 0.41
Axial load factors : Y1() 1.47
Axial load factors : Y0() 0.81





Taper Roller Bearing Description



Tapered roller bearings are separable into a cone assembly and a cup. The non-separable cone assembly consists of the inner ring, the rollers, and a cage that retains and evenly spaces the rollers. The cup is simply the outer ring.



Tapered Roller Bearing  Product number



Part No. BOUNDARY DIMENSIONS (in m.m.) LOAD RATING LIMITING SPEED (R.P.M.) MASS
d D B C T STATIC (Co) KN DYNAMIC (C) KN Grease Oil (~ Kg.)
395 A / 394 A 66.675 110 21.996 18.824 22 113.7 85.3 3200 4300 0.79
395-S/394A 66.675 110 21.996 18.824 22 113.7 85.3 3200 4300 0.78
3984 / 3920 66.675 112.712 30.048 23.812 30.162 183 123 3200 4300 1.187
641 / 632 66.675 136.525 41.275 31.75 41.275 261.2 194.4 2800 3800 2.73
L713049/L713010 69.85 101.6 19.05 15.083 19.05 102.5 59.1 3200 4300 0.5
482 / 472 69.85 120 29.007 24.237 29.795 188.6 131.2 3000 4000 1.33
47487 / 47420 X 69.85 120 32.545 26.195 32.545 26.195 32.545 3000 4000 1.5
566 / 563 69.85 127 36.17 28.575 36.512 254.7 176.6 2800 3800 1.945
JW 7049 / JW 7010 70 140 35.5 27 39 244 180.3 2400 3200 2.65
47490/47420 71.438 120 32.545 26.195 32.545 218.1 149.1 3000 4000 1.42
HM 215249/HM 215210 75.987 131.975 39 32 39 280.8 196.9 2600 3500 2.11
34300 / 34478 76.2 121.442 23.012 17.463 24.608 127.6 90.8 2900 3800 0.954
6461/6420 149.225 54.229 44.45 53.975 410.6 287.9 2400 2400 3200 4.185


 Taper Roller Bearings Applications

Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including double-end face grinding machine etc., flaw detector...In addition, we have obtained ISO9001: 2008 certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Europe, America, Middle East, Africa and Southeast Asian.

JHM516849/10 Single-row Tapered Roller Bearing 3.3465x5.5118x1.5354 Inch 0

JHM516849/10 Single-row Tapered Roller Bearing 3.3465x5.5118x1.5354 Inch 1
