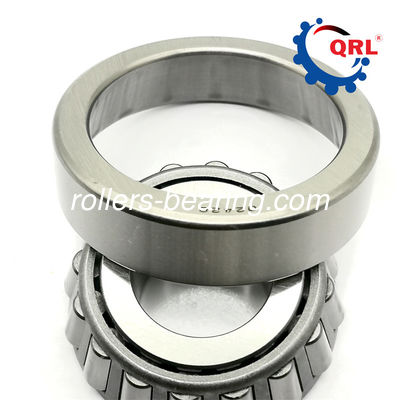

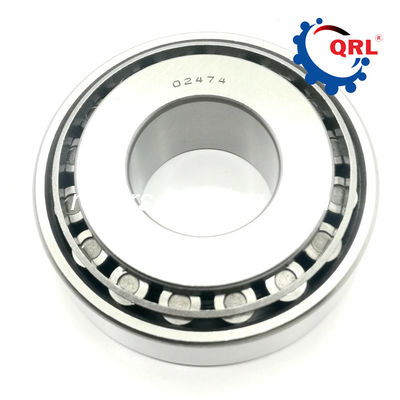

02474/20 Tapered Roller Bearings Single Row Inch Series 28.575x68.262x22.225 Mm

02474/20 Tapered roller bearings - Single row Inch serie 28.575x68.262x22.225 mm

Tapered Roller Bearing Specification

02474/02420 bearing, inner diameter is 28.575mm, outer diameter is 68.262mm, thickness is 22.225mm, type is tapered roller bearing, basic rated dynamic load (radial Cr) is 51kN, basic rated static load (radial Cor) is 61.1kN, speed under grease lubrication is 6000N(1/min) 4.

Taper Roller Bearing Description

Tapered roller bearings are separable into a cone assembly and a cup. The non-separable cone assembly consists of the inner ring, the rollers, and a cage that retains and evenly spaces the rollers. The cup is simply the outer ring.


 Taper Roller Bearings Applications

Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including double-end face grinding machine etc., flaw detector...In addition, we have obtained ISO9001: 2008 certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Europe, America, Middle East, Africa and Southeast Asian.
