Product Details:
|
| Dimensions: | 09067/09195 | Size: | 19.05x49.23x18.03mm |
|---|---|---|---|
| Type: | Imperial Taper Bearing | Application:: | Engineering Machinery |
| Brand Name:: | OEM-QRL | Weight: | 0.2 Kg. |
| Highlight: | Imperial Taper Tapered Roller Bearing,19.05x49.23x18.03mm Tapered Roller Bearing,09067/09195 Tapered Roller Bearing |
||
| d - Internal diameter | 19,05 mm |
| D - External diameter | 49,225 mm |
| B - Bearing/Inner ring width | 19,05 mm |
| C - Outer ring width | 14,288 mm |
| T - Total width | 18,034 mm |
| d1 - External diameter inner ring | 32,5 mm |
| a - Charge load application point | 10,434 mm |
| Mass | 0,179 kg |
Taper Roller Bearing Description

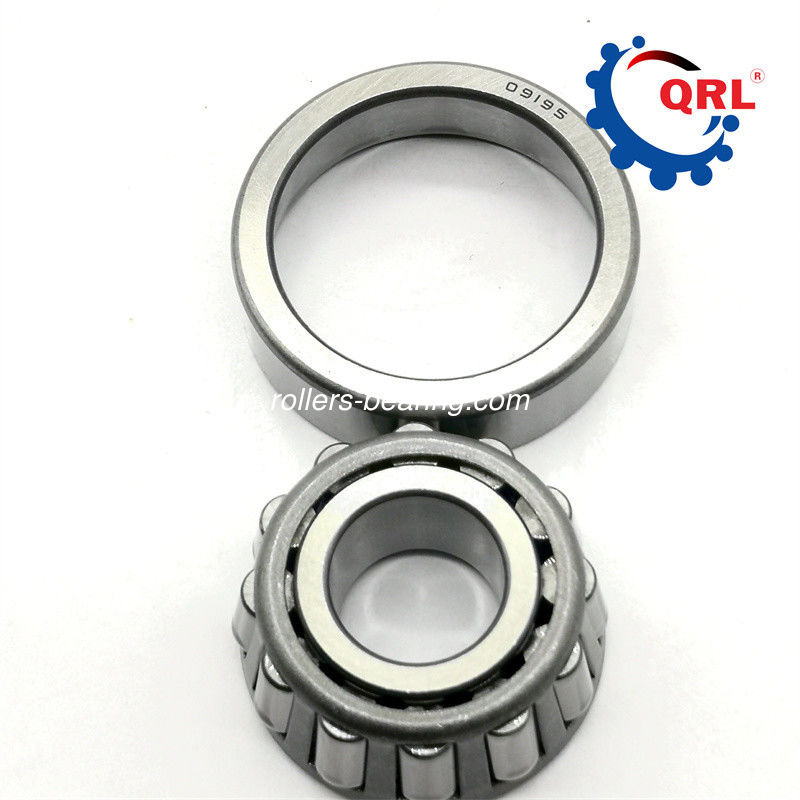

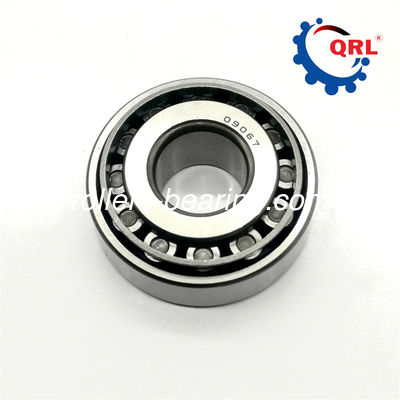

Tapered roller bearings are separable into a cone assembly and a cup. The non-separable cone assembly consists of the inner ring, the rollers, and a cage that retains and evenly spaces the rollers. The cup is simply the outer ring.
Tapered Roller Bearing Product number
| 575/572 | 6049/6010 (T2ED060) | 89449/89410 | |||
| 582/522 | 716649/716610 | 913842/913810 | |||
| 6049/6010 (T2ED060) | 4049/4010 (T2ED040) | T2ED040 | |||
| 7049/7010 (538971) (T2ED070) | 804358 | 4549/4510 (T2ED045) | |||
| 807049/807010 | 805008 | 5049/5010 (T2ED050) | |||
| 813841/813810 | 805415A | 5549/5510 (T2ED055) | |||
| 88542/88510 | 809302 | 32316 |
Taper Roller Bearings Applications
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including double-end face grinding machine etc., flaw detector...In addition, we have obtained ISO9001: 2008 certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Europe, America, Middle East, Africa and Southeast Asian.
