Product Details:
|
| Type: | Inch Taper Roller Bearing | Number Of Row: | 34300/34478 |
|---|---|---|---|
| Inch: | 76,2x121,44x11,9 | Roller Bearing Type: | Taper |
| Weight: | 1.0 Kg/pcs | Cage Material: | Steel |
| Static Load Rating: | 70200N | Brand: | QRL/Oem/Neutr |
Tapered Roller Bearing Specification
| d | 76.2 | mm | Bore diameter |
| D | 121.442 | mm | Outside diameter |
| T | 24.608 | mm | Total width |
| B | 23.012 | mm | Width of inner ring |
| C | 17.462 | mm | Width of outer ring |
| Cup r (min.) | 2 | mm | Chamfer dimension of outer ring (Cup) |
| Cone r (min.) | 2 | mm | Chamfer dimension of inner ring (Cone) |

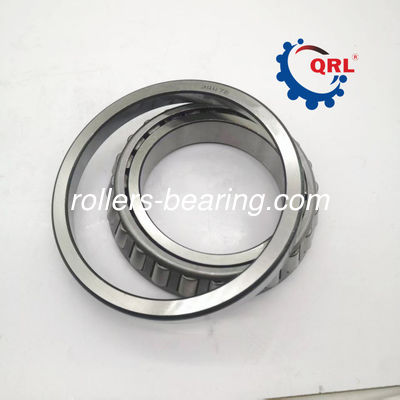

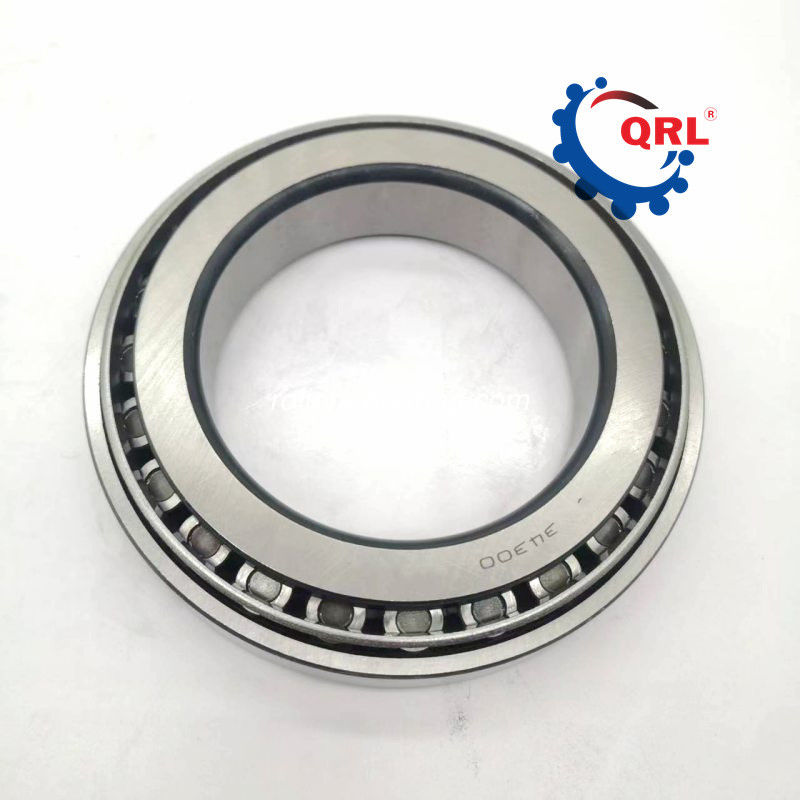

Inch Taper Roller Bearing Description
The bearing consists of two rings (inner and outer) and rolling elements (tapered rollers) which are connected by a cage. The inner ring with a cage and rolling elements is a CONE. The outer ring is a CUP.
The design of tapered roller bearings suites for the perception of combined (radial and axial) loads. Tapered roller bearings have a split construction: the inner ring with the rollers and separator create the unit, that can be mounted separately from the outer ring.
Product number
| Part No. | BOUNDARY DIMENSIONS (in m.m.) | LOAD RATING | LIMITING SPEED (R.P.M.) | MASS | ||||||
| d | D | B | C | T | STATIC (Co) KN | DYNAMIC (C) KN | Grease | Oil | (~ Kg.) | |
| LM 102949 / LM 102910 | 45.242 | 73.431 | 19.812 | 15.748 | 19.558 | 76 | 54 | 4800 | 6400 | 0.307 |
| LM 603049 / LM 2603011 | 45.242 | 77.788 | 19.842 | 15.08 | 19.842 | 70.3 | 55.3 | 5850 | 7500 | 0.37 |
| HM 204049 / HM 204010 | 45.987 | 90.975 | 32 | 26.5 | 32 | 150.5 | 119.1 | 4300 | 5600 | 0.94 |
| 359-S/354X | 46.038 | 85 | 21.692 | 17.462 | 20.635 | 89.5 | 76.1 | 4400 | 5800 | 0.49 |
| HM 804846 / HM 804810 | 47.625 | 95.25 | 29.37 | 23.02 | 30.162 | 140 | 104.3 | 4000 | 5300 | 0.98 |
| 528/522 | 47.625 | 101.6 | 36.068 | 26.988 | 34.925 | 169 | 137.3 | 3800 | 5000 | 1.29 |
| CK 50 K / 3720 | 50 | 93.264 | 30.302 | 23.812 | 30.162 | 148.9 | 110.9 | 4000 | 5300 | 0.87 |
| JW 5049 / JW 5010 | 50 | 105 | 29 | 22 | 32 | 145.5 | 114.3 | 3400 | 4500 | 1.23 |
| 370A / 362A | 50.8 | 88.9 | 22.225 | 16.513 | 20.638 | 91 | 76.5 | 4300 | 5600 | 0.51 |
| 28580 / 25821 | 50.8 | 92.075 | 25.4 | 19.845 | 24.607 | 116.1 | 84.2 | 4000 | 5300 | 0.7 |
| 455/452 | 50.8 | 107.95 | 29.317 | 27 | 32.557 | 148 | 115 | 3500 | 4700 | 1.34 |
| 3780 / 3720 | 50.8 | 93.264 | 30.302 | 23.812 | 30.162 | 148.9 | 110.9 | 4000 | 5300 | 0.84 |
| 33889 / 33822 | 50.8 | 95.25 | 28.575 | 22.225 | 27.783 | 140 | 107.3 | 3900 | 5200 | 0.88 |
Taper Roller Bearings Applications
